Molex 1511181004 — Pin Headers

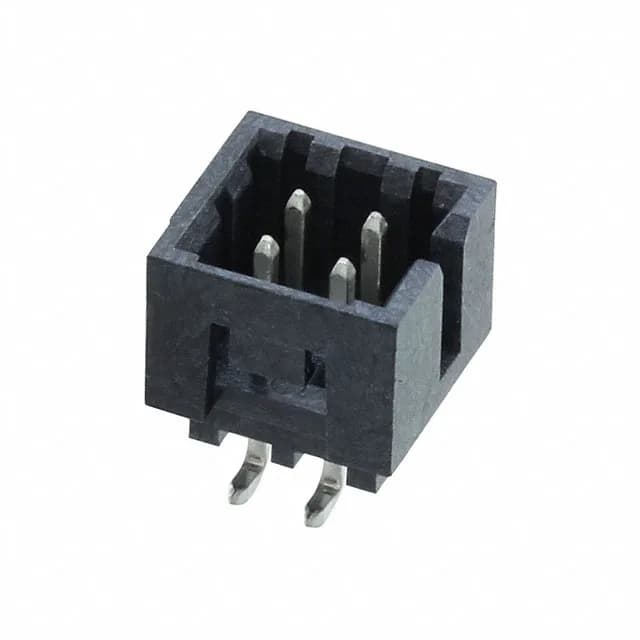

1511181004 Molex Milli-Grid 2mm SMT Header 4 Pos

MPN1511181004
Active

Molex Milli-Grid 151118, shrouded header, 4 circuits, 2.00mm pitch, SMT, detent lock, Glow Wire compliant, 2A, -55°C to 105°C, UL94 V-0, ROHS3

$1.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 151118
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1511181004 key specifications
ParameterValue
SeriesMilli-Grid 151118
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125VAC
Current rating2A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.252\" (6.40mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

1511181004 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesGlow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions4
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.142\" (3.61mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating78.7µin (2.00µm)

Product details

The 1511181004: This is a 4-position, 2-row shrouded header on 2.00mm pitch, SMT terminated. The 4-wall shroud and detent lock mean the mating receptacle clicks in and stays put under vibration — a step up from unshrouded pin strips for field-installed cable assemblies.

Current and temperature envelope

The 2A limit is typical for 2mm signal headers; the wide temperature band and UL94 V-0 LCP housing suit it for automotive interior, telecom, and general-purpose board-to-board or cable interconnects.

Frequently asked questions

Is 1511181004 Glow Wire compliant?

Yes, the 1511181004 is listed as Glow Wire compliant, which simplifies approvals for appliance and automotive applications where the connector must not propagate a flame under fault conditions.
