Molex 1511920020 — Connector Housings

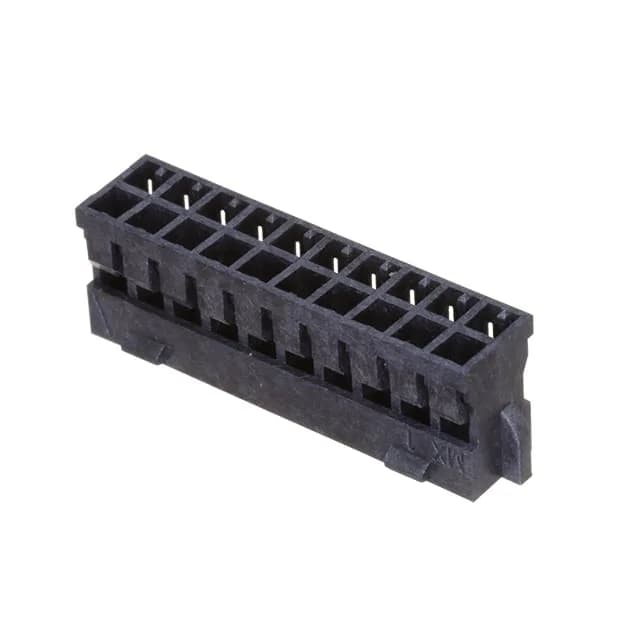

Molex Milli-Grid 1511920020, 20-Position Receptacle Housing

MPN1511920020
Active

Molex Milli-Grid 151192 series, receptacle housing, 1511920020, 20 positions, 2 rows, 2.00mm pitch, free-hanging, crimp termination, latch holder, black polyester, -55°C to 105°C.

$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 151192
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1511920020 specifications
ParameterValue
SeriesMilli-Grid 151192
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyester
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBag
Rows2
Contact terminationCrimp
Positions20

Product details

The Contacts Are Not in the Bag — Here's What You Need

This housing ships empty. The spec line says it plainly: Contacts Not Included. You order the 1511920020 housing and separately source the Milli-Grid female crimp terminals. The contact part number is not on this listing, but the series accepts standard Milli-Grid 2.00 mm pitch socket contacts — confirm wire gauge and plating (tin vs gold) against your application. The crimp termination lets you build custom cable lengths and service individual wires in the harness.

Because the housing is free-hanging, the header is typically board-mounted — through-hole or surface-mount — and the receptacle wires into the harness. Verify the header's orientation (vertical vs right-angle) against your board layout before committing.

Listed as Active on the lifecycle record. The 151192 series is a standard Molex line.

Frequently asked questions

Does 1511920020 include contacts?

No. The housing ships without contacts — the spec explicitly states Contacts Not Included. You must order the Milli-Grid female crimp terminals separately.

What mating connector fits 1511920020?

Any Milli-Grid 151192 series pin header with 20 circuits, dual rows, and 2.00 mm pitch will mate. The latch holder on this housing locks with the header's ramp.

Is 1511920020 RoHS compliant?

Yes, it is ROHS3 Compliant.
