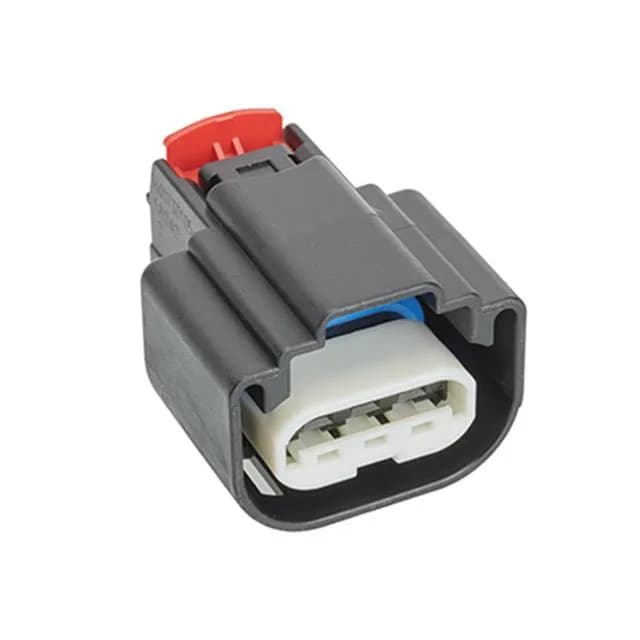

MX150 Sealed Receptacle Housing — 3-Way, 4.50 mm Pitch
The Molex MX150 1600733102 is a 3-position single-row receptacle housing from the MX150 160073 series, designed for sealed wire-to-board or wire-to-wire interconnects in environments where moisture and vibration are present. The 4.50 mm pitch accommodates larger wire gauges typical of power and signal circuits in automotive and industrial harnesses. The housing carries a sealed designation, meaning the interface is protected against water ingress when mated with the correct connector and properly terminated.
What the Sealed Housing Buys You
The sealed feature means this housing is built for wet or washdown environments — think engine compartments, exposed chassis harnesses, or industrial equipment that sees hose-down cleaning. The glass-filled PA6 insulation material holds up to the thermal cycling and chemical exposure these environments demand.
This housing ships empty.
Free-hanging (in-line) mounting means this housing is used on the wire harness side, not panel-mounted.
