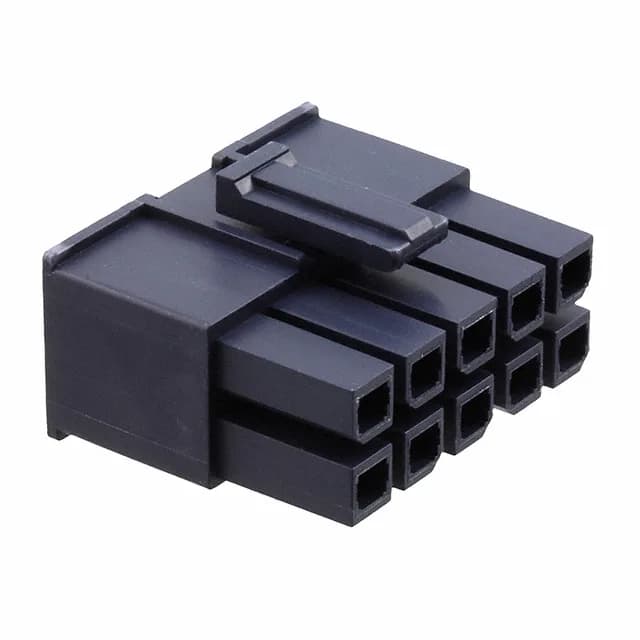

Molex Mega-Fit 170001 series, receptacle housing, 10 positions, 2 rows, 5.70mm pitch, crimp termination, latch lock, glow wire compliant, -40°C to 120°C, black PA nylon, free hanging.
| Parameter | Value |
|---|---|
| Series | Mega-Fit 170001 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.224\" (5.70mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Row spacing | 0.224\" (5.70mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The -40°C to 120°C operating range covers under-hood and cabinet thermal cycling without derating concerns.
For a complete mated pair, order the receptacle housing, the crimp terminals (sized to your wire gauge), and the corresponding male header.
The housing is molded from polyamide (PA) nylon in black. Glow wire compliance is confirmed. RoHS3 compliant.
The mating half is a Mega-Fit 170001 series male header with the same 5.70mm pitch and dual-row, 10-position layout. The latch lock on the receptacle engages with the header's locking ramp.
Yes, the 1700010110 is ROHS3 compliant.
The 1700010110 is a 10-position receptacle housing; the 1700010112 is a 12-position version of the same Mega-Fit 170001 series, same 5.70mm pitch and dual-row layout. The position count is the only difference — select based on your circuit count.
