6-Circuit Power Housing, No Contacts Inside

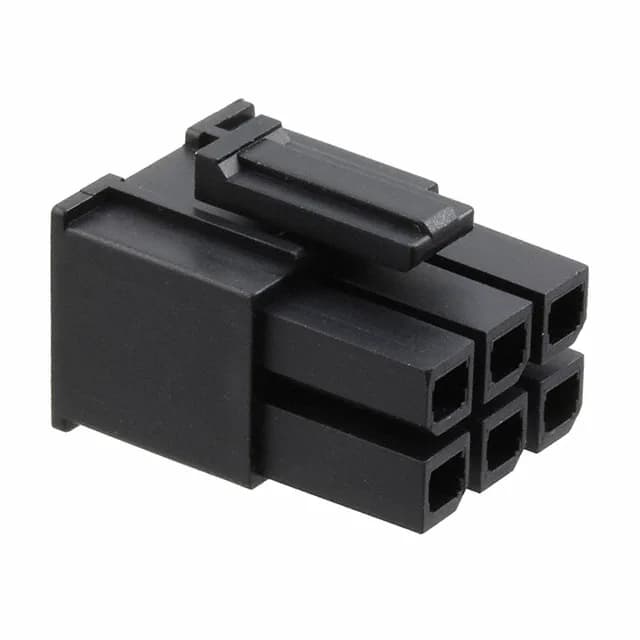

The Molex 1716920106 is a 6-position, 2-row receptacle housing from the Mega-Fit series, designed for wire-to-board power interconnects in high-current harness assemblies. The 5.70mm pitch provides generous creepage for the voltage rating typical of this series, while the latch lock secures the mated pair against vibration in automotive or industrial enclosures.
What Mates and What You Still Need to Order
This receptacle housing mates with the Mega-Fit header (male pin) of the same 5.70mm pitch and circuit count. The latch lock on the housing engages the header's locking ramp for a positive, audible click. Contacts are not included — you need to order the matching female crimp terminal separately. The terminal wire range and current rating depend on the specific terminal selected; the housing itself does not limit current beyond the terminal's rating. Termination is crimp, with the terminal inserted into the housing cavity and retained by the latch.
