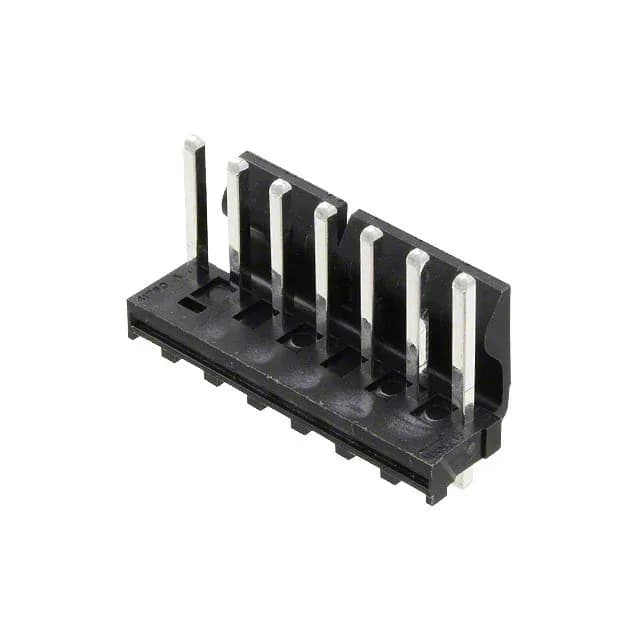

The 1718130007: This is a 7-position, single-row, shrouded header from Molex's KK396 series, with a 3.96mm (0.156") pitch — wider than the common 0.100" signal header, so it's suited for moderate-current board-to-board or board-to-wire connections in power distribution, industrial controls, or automotive interior harnesses. The single-wall shroud and friction lock keep the mating receptacle engaged under vibration or cable pull, a step up from an unshrouded header.
Molex 1718130007 Header – 7 Pos, 3.96mm, Friction Lock
MPN1718130007
Active
Molex KK396, 171813 series, 7-position single-row shrouded header, 3.96mm pitch, friction lock, through-hole solder termination, tin-plated contacts, UL94 V-2, black insulation.
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK396, 171813
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 171813 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Overall contact length | 0.671\" (17.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.448\" (11.38mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Product details
Frequently asked questions
What is the mating half for 1718130007?
This shrouded header with friction lock mates with a KK396 crimp receptacle housing (e.g., Molex 171815 series) that has the matching friction lock ramp. The 3.96mm pitch and single-row layout are standard across the KK396 family.
