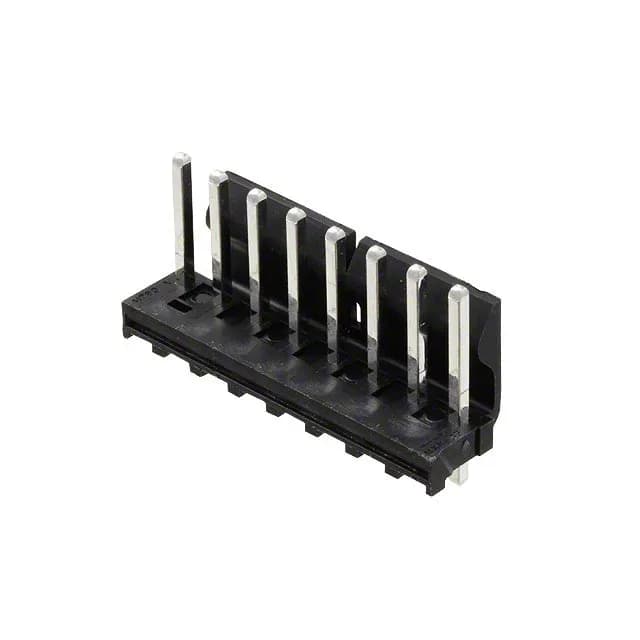

Molex KK396, 171813 series, 8-position single-row vertical header, 3.96mm pitch, through-hole solder termination, tin-plated square pins, friction lock, UL94 V-2, RoHS3
| Parameter | Value |
|---|---|
| Series | KK396, 171813 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Overall contact length | 0.671\" (17.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.448\" (11.38mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1718130008: This Molex KK396 header carries 8 circuits on a 3.96mm pitch, wider than typical signal-grade 0.100" headers, suiting it for power distribution in board-to-wire or board-to-board links. The single-wall shroud and friction lock keep the mating housing aligned and latched under moderate vibration, reducing the chance of pin damage during assembly or in-service shock.
The mating pitch is 0.156" (3.96mm), single row.
Yes, it is ROHS3 Compliant.
