Molex 1718131008

Molex 1718131008 KK396 Header 8 Pos 3.96mm

MPN 1718131008
Active

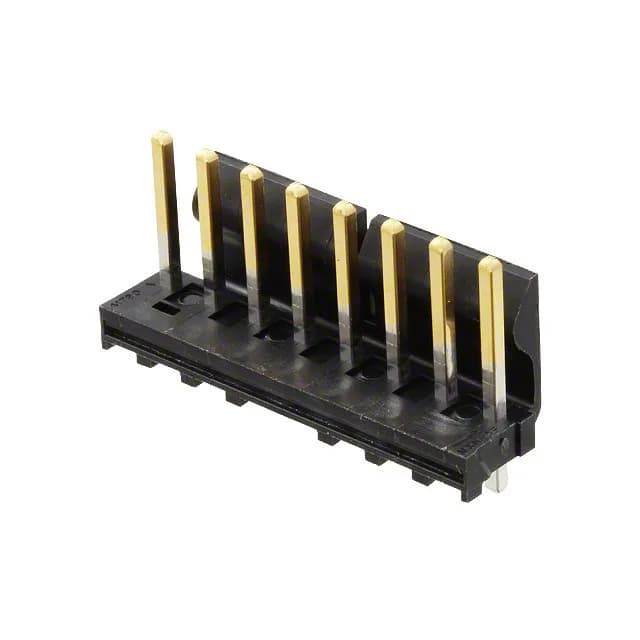

Molex KK396 171813 series, 8-position single-row male header, 3.96mm pitch, through-hole solder termination, friction lock, gold-plated mating contacts, black PA housing, UL94 V-2.

$2.2300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK396, 171813
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1718131008 key specifications
ParameterValue
SeriesKK396, 171813
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.446\" (11.33mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-2
StyleBoard to Board or Cable
PackageBulk

All specifications

1718131008 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions8
Contact finish - postTin
Contact length - post0.093\" (2.35mm)
Overall contact length0.671\" (17.05mm)
Contact finish - matingGold
Contact length - mating0.448\" (11.38mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

8 positions at 3.96 mm pitch — BOM-fit check

Molex 1718131008 is an 8-position, single-row male header from the KK396 series, on 0.156" (3.96 mm) pitch. That pitch is the standard for the KK396 family, so the footprint lines up with the matching crimp housings and PCB receptacles. The friction lock keeps the mating half seated under vibration — a detail that matters when this header lives inside an automotive or industrial enclosure where the cable gets tugged.

Gold mating finish — why it is there

The post finish is tin, 100.0 µin, which solders cleanly into the through-hole board and avoids galvanic mismatch with the PCB pad finish.

This header mates with the KK396 crimp receptacle housings — the same 3.96 mm pitch, single-row, friction-lock compatible.
