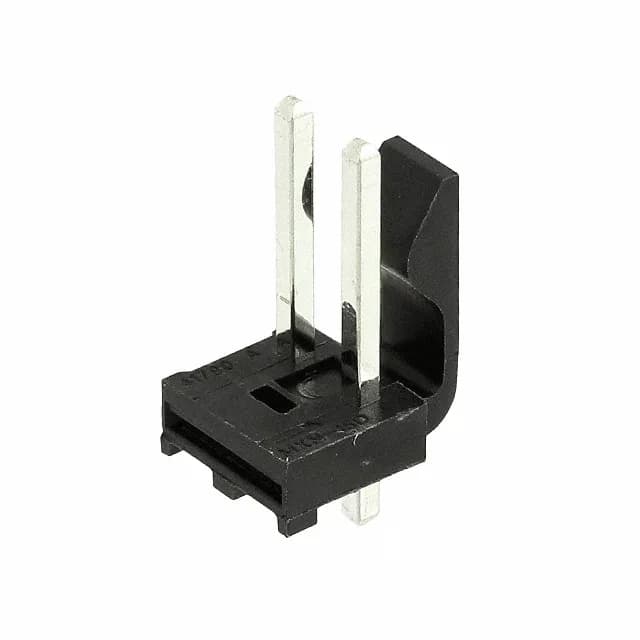

Molex KK396 series, 171813, Board to Board or Cable header, 2 positions, 0.156" (3.96mm) pitch, shrouded 1 wall, friction lock, through hole, tin contacts, UL94 V-2
| Parameter | Value |
|---|---|
| Series | KK396, 171813 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Pick and Place |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.093\" (2.35mm) |
| Overall contact length | 0.671\" (17.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.448\" (11.38mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Molex 1718133002 is a vertical through-hole header from the KK396 series, 2 positions loaded, on a 0.156" (3.96mm) pitch. Rated for use in automotive, general purpose, industrial, medical, and telecommunications equipment per the series qualification.
