4-Position KK396 Header with Friction Lock

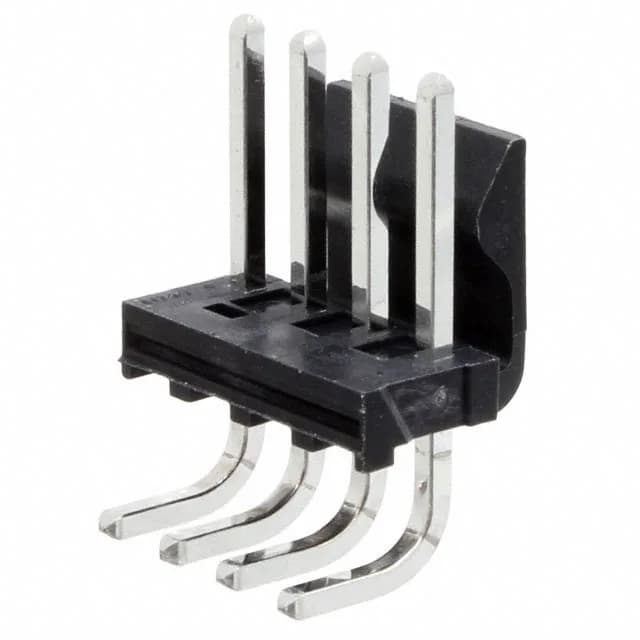

This Molex 1718140004 is a 4-position, single-row header from the KK396 series, pitched at 0.156" (3.96 mm) for legacy power and signal distribution.
Pitch, Pinout, and Mating Half
All 4 positions are loaded with square tin-plated male pins, 0.446" (11.33 mm) mating length, designed to mate with KK396 crimp receptacle housings. The single-wall shroud provides keyed polarization; the mating receptacle must have the corresponding slot to align correctly.
ROHS3 compliance is confirmed.
