Molex KK396, 171814 series, Board to Board or Cable header, 6 circuits, 0.156" (3.96mm) pitch, Through Hole, Right Angle, Tin mating finish, Friction Lock, UL94 V-2, Active
| Parameter | Value |
|---|---|
| Series | KK396, 171814 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.446\" (11.33mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |

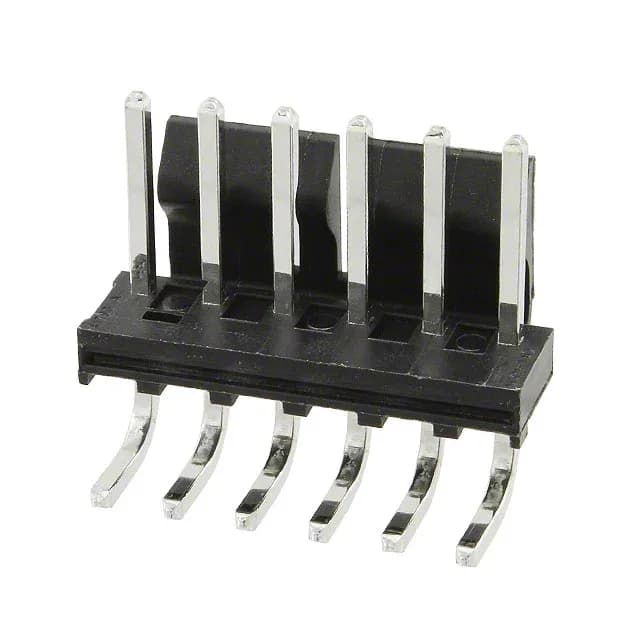

This Molex 1718140006 is a single-row, 6-position header from the KK396 series, with a 0.156" (3.96mm) pitch. It is a shrouded, right-angle, through-hole header with a friction lock for secure mating. The tin-plated square pins suit general-purpose, industrial, automotive, medical, and telecom applications.
The 0.156" pitch and 6 circuits are the first two numbers a buyer checks against the board layout and the mating receptacle.
The pitch is 0.156" (3.96mm).
Yes, it has a friction lock for secure mating.
Yes, it is ROHS3 compliant.
The KK396 series includes other position counts and plating options, but a direct pin-compatible substitute would need to match the 6-position, 3.96mm pitch, right-angle, friction-lock configuration. Confirm the BOM position and mating half before substituting.
