Right-angle header for board-edge harness routing

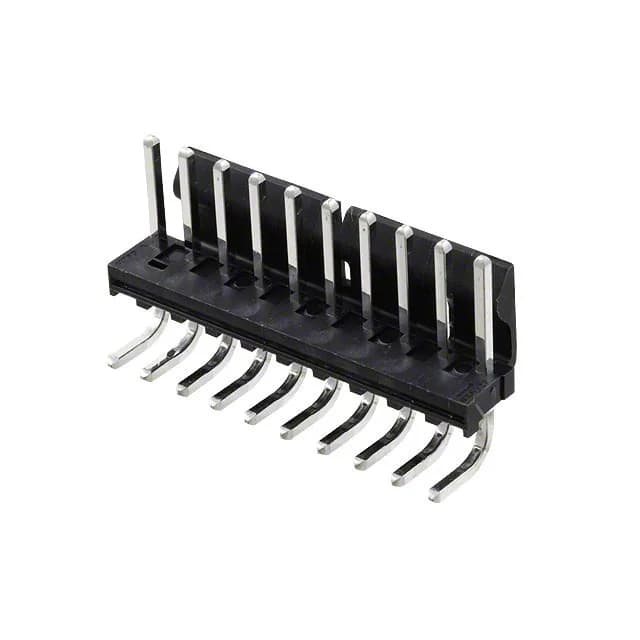

The 1718140010: This is a 10-position, single-row male header from the Molex KK396 series, on a 3.96 mm pitch.
Mating half and housing compatibility
This header mates with standard KK396 crimp receptacle housings (e.g., Molex 2139 series) that accept 18–24 AWG terminals. The 3.96 mm pitch and single-row layout are shared across the KK396 family, so any 10-position KK396 female housing with a friction-lock ramp will latch onto this header. The tin-plated mating surface (60.0 µin) is rated for moderate mating cycles — typical for field-serviceable connections in general-purpose or medical equipment, not high-cycle disconnect applications.
