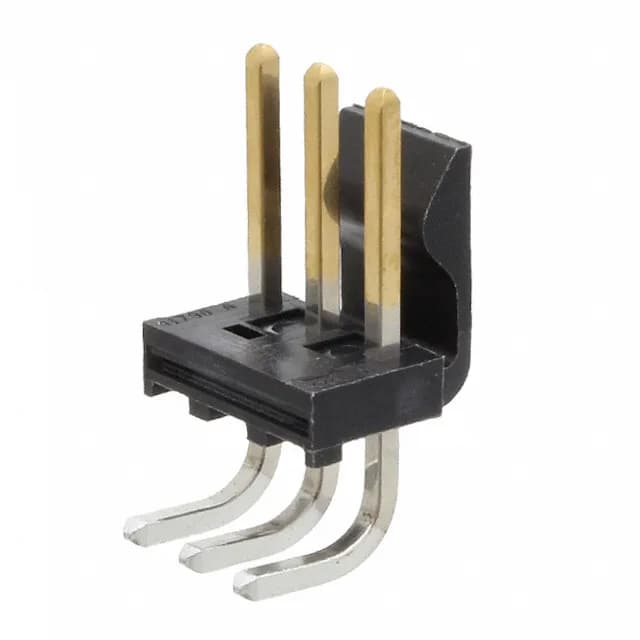

Molex KK396 series, 1718141003, Board to Board or Cable header, 3 positions, 3.96mm pitch, right-angle through-hole, gold-plated male pins, friction lock, black nylon housing, UL94 V-2.
| Parameter | Value |
|---|---|
| Series | KK396, 171814 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.446\" (11.33mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1718141003: A single-row, 3-position header on 3.96mm pitch — the 0.156" spacing matches the classic KK396 footprint. Post tails are tin-plated for solderability.
A friction-lock ramp on the shroud engages the mating housing latch, preventing the pair from separating under vibration or cable strain. This is a key feature for automotive and industrial applications listed in the spec.
We source this active Molex header per RFQ. Submit your target quantity and we will confirm pricing and lead time from our supply chain.
The mating pitch is 0.156" (3.96mm), standard for the KK396 series.
Yes, it is listed as ROHS3 Compliant.
This header mates with a Molex KK396 crimp housing (e.g., 6471 series) that accepts the matching crimp terminal. The friction lock on the header engages the housing latch.
3 positions, all loaded.
