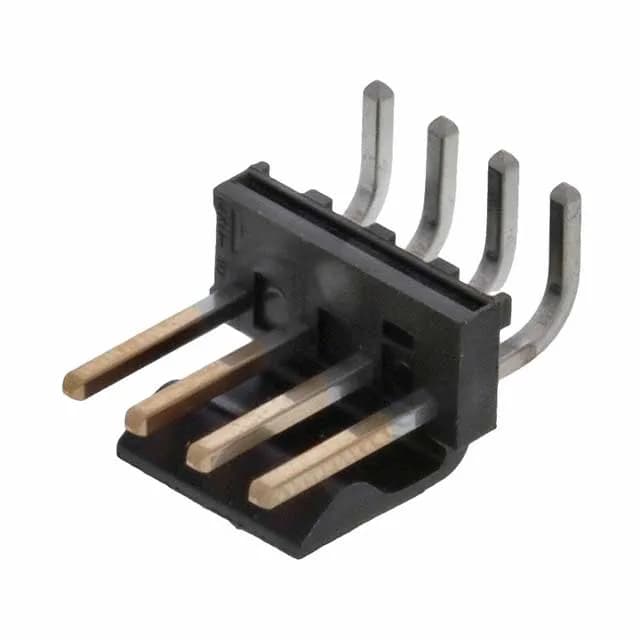

Molex 1718144004 Header – 4 Pos, 3.96mm Pitch, Right Angle

MPN1718144004
Active

Molex KK396 series, 1718144004, Board to Board or Cable header, 4 circuits, 0.156" (3.96mm) pitch, right-angle through-hole, shrouded 1-wall, friction lock, gold mating contacts, UL94 V-2.

$2.3700Ref. price · indicative, final on quote
Molex 1718144004 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 171814
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1718144004 key specifications
ParameterValue
SeriesKK396, 171814
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.394\" (10.00mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-2
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

1718144004 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.446\" (11.33mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle 4-position header for board-edge harness routing

The 1718144004: It is a shrouded 1-wall design, meaning the plastic wall on one side guides the mating receptacle into alignment — useful when the connector is near a board edge or inside a tight enclosure where visual alignment is limited. The right-angle through-hole termination keeps the mated cable parallel to the PCB, saving vertical space in enclosures. The friction lock provides a positive hold against vibration without requiring a secondary latch or screw.

Active production and sourcing posture

Sourced per RFQ against your BOM quantity.

Frequently asked questions

What is the pin pitch of the Molex 1718144004?

The pitch is 0.156" (3.96mm), measured centre-to-centre between adjacent pins.

Is the 1718144004 shrouded?

Yes, it is a shrouded 1-wall header. One side of the header has a plastic wall that guides the mating receptacle into alignment during connection.

Can the 1718144004 be used for wire-to-board applications?

Yes, the style is listed as Board to Board or Cable, and the friction lock mates with KK396 crimp receptacle housings for wire-to-board connections.
