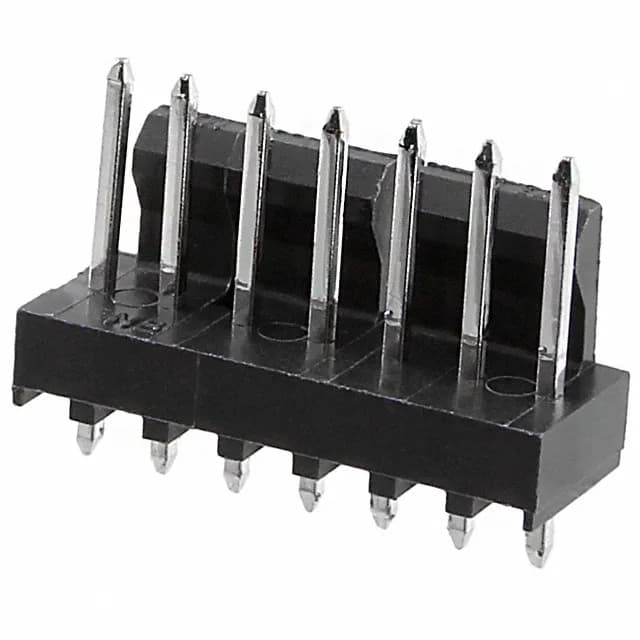

Molex KK254, 171856 series, 7-position single-row vertical header, 0.100" (2.54mm) pitch, shrouded 1-wall, friction lock, tin-plated brass contacts, through-hole solder termination, UL94 V-2 nylon housing, black.
| Parameter | Value |
|---|---|
| Series | KK254, 171856 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.092\" (2.34mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.293\" (7.45mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1718560007: This 7-position header uses the classic 0.100" (2.54mm) pitch, which sets the board footprint and determines which receptacle it mates with. The friction lock is the key retention feature — it prevents the header from backing out of the mating receptacle under cable strain or vibration. No secondary latch needed.
The 1-wall shrouding guides the mating half and protects the pins during handling.
ROHS3 compliant. Bulk packaging.
