Board fit and mating interface

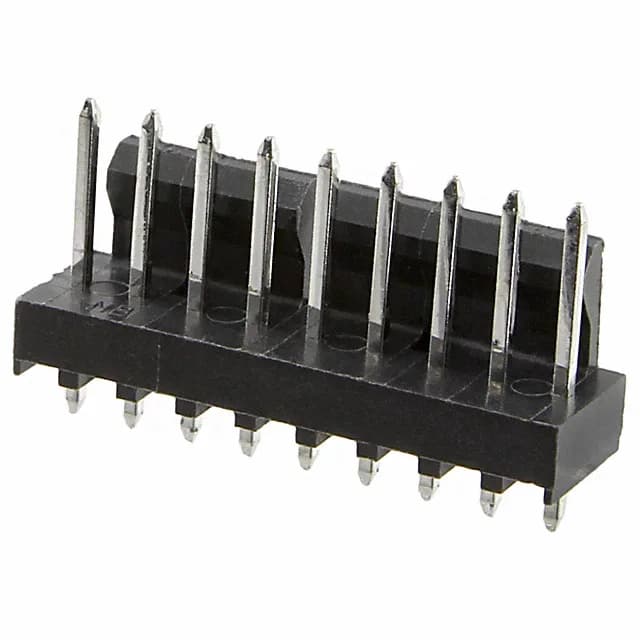

ROHS3 compliant and rated UL94 V-2 for the nylon housing. Bulk packaging, 9 positions loaded all.
The 0.100" pitch matches legacy 2.54 mm grid layouts — footprint compatible with Molex KK254 and many other industry-standard headers. Single row keeps board space tight; the 0.322" (8.18 mm) insulation height provides clearance for wire entry above the housing. Friction lock adds vibration resistance in automotive and industrial panels. The 0.510" (12.95 mm) overall contact length gives enough tail for through-hole solder fillet formation.
