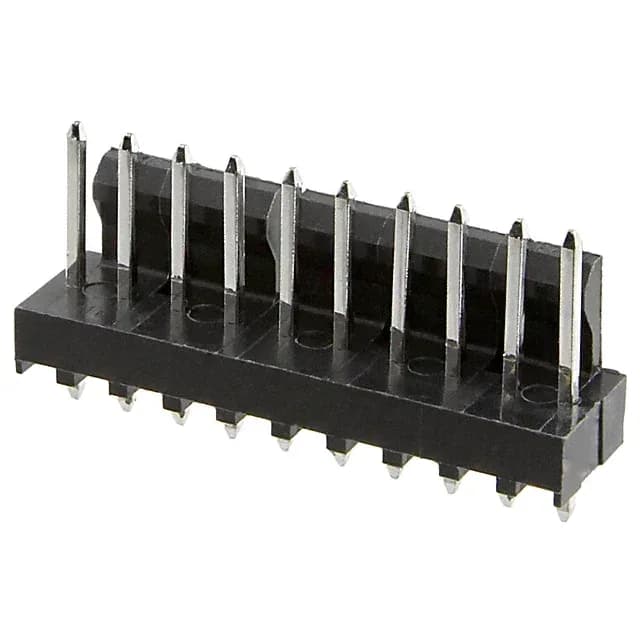

Molex KK254, 171856 series, 10-position single-row header, 0.100" (2.54 mm) pitch, shrouded 1-wall, through-hole solder termination, tin-plated male pins, friction lock, UL94 V-2, bulk package.
| Parameter | Value |
|---|---|
| Series | KK254, 171856 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.092\" (2.34mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.293\" (7.45mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1718560010: Single-row layout with all positions loaded — no empty slots to confuse the wiring harness.
Brass contacts carry the signal; the nylon housing carries the UL94 V-2 flammability rating.
ROHS3 compliant, bulk packaged.
This is a single-row, 10-position header with all positions loaded. Pin 1 is typically marked by a square pad on the PCB footprint or a chamfer on the housing. The mating receptacle uses a standard KK254 crimp housing.
Yes, the fastening type is Friction Lock. It holds the header to the mating receptacle without a separate latch.
The mating pitch is 0.100" (2.54 mm).
Yes, it is ROHS3 compliant.
