Molex 1718561003

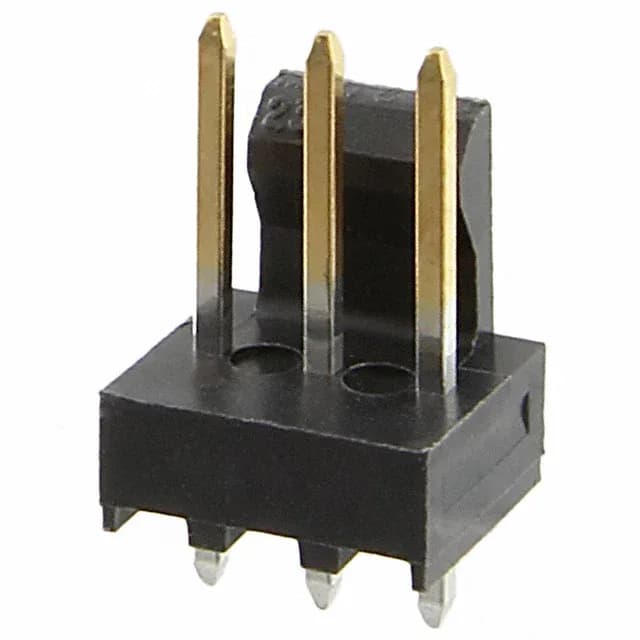

Molex 1718561003 KK254 Header, 3-Pos, 2.54mm, Friction Lock

MPN 1718561003
Active

Molex KK254, 171856 series, 3-position single-row vertical header, 0.100" (2.54mm) pitch, shrouded 1-wall, friction lock, gold mating finish, through-hole solder termination, UL94 V-2.

$0.5600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK254, 171856
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1718561003 key specifications
ParameterValue
SeriesKK254, 171856
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.322\" (8.18mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-2
StyleBoard to Board or Cable
PackageBulk

All specifications

1718561003 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact length - post0.092\" (2.34mm)
Overall contact length0.510\" (12.95mm)
Contact finish - matingGold
Contact length - mating0.293\" (7.45mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The 1-wall shrouding and friction lock keep the mated pair aligned and resistant to vibration without needing a separate locking clip.

Through-hole mounting with a 0.092" (2.34mm) post length — the solder tails sit through the board and are wave-soldered. Insulation height is 0.322" (8.18mm) above the board surface, so plan for that z-height clearance under the mating receptacle or above adjacent components.

How this compares to the 2- and 4-position siblings

The 1718561003 (3 positions) is the middle option between the 2-position 1718561002 and the 4-position 1718561004. If your BOM needs exactly three circuits, this is the one; if you need two or four, those siblings are drop-in replacements on the same footprint pattern.
