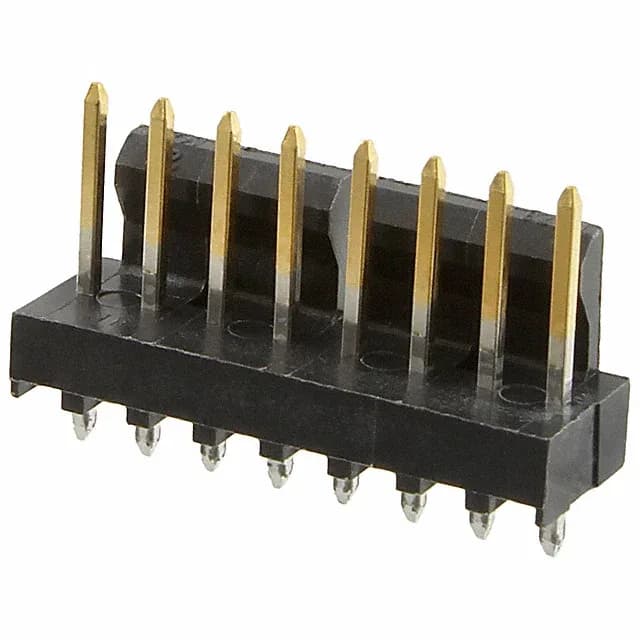

Molex KK254, 171856 series, 8-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated male pins, friction lock, UL94 V-2, ROHS3.
| Parameter | Value |
|---|---|
| Series | KK254, 171856 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.092\" (2.34mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.293\" (7.45mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1718561008: This is an 8-position, single-row header from the Molex KK254 series, pitched at 0.100" (2.54mm) — the standard spacing that fits perfboard and legacy KK254 tooling. The 1-wall shrouding guides the mating housing, and the friction lock holds it in place without a secondary latch.
The contact material is brass, square pin, rated for the full 8 positions loaded.
The pitch is 0.100" (2.54mm) and it has 8 positions, all loaded, in a single row.
