Molex KK254, 171857 series, 5-position single-row header, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 1 wall, friction lock, tin-plated brass contacts, UL94 V-2, active production.
| Parameter | Value |
|---|---|
| Series | KK254, 171857 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.265\" (6.73mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |

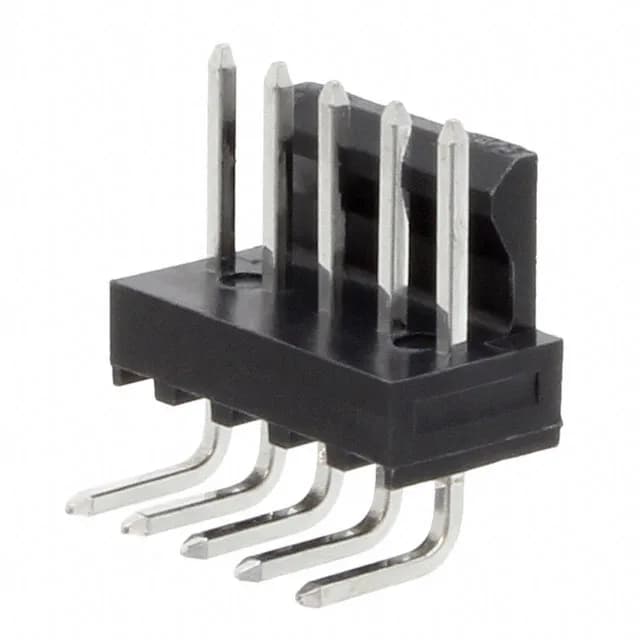

The 1718570005: This is a 5-position single-row header from the Molex KK254 series, 0.100" (2.54mm) pitch, through-hole right-angle mounting. That matters on a harness that sees vehicle or machine movement.
The 60 µin layer gives enough wear margin for occasional disconnect-reconnect in service.
Status is Active. ROHS3 compliant.
This header mates with a KK254 crimp receptacle housing (single-row, 5-circuit) using the matching crimp terminals. The friction lock on the header engages the receptacle's locking ramp. Confirm the receptacle part number against your harness assembly.
