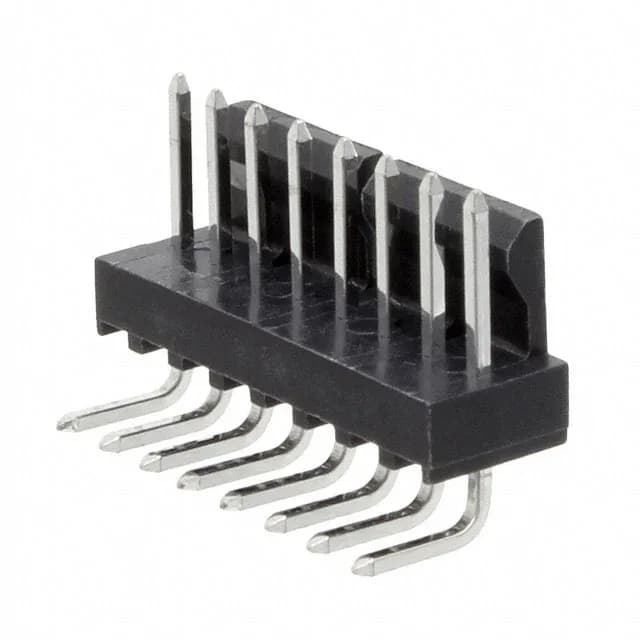

Molex KK254 series, 1718570008, 8-position single-row right-angle header, 0.100" (2.54mm) pitch, shrouded 1 wall, friction lock, through-hole solder termination, tin-plated square pins, UL94 V-2 nylon housing.
| Parameter | Value |
|---|---|
| Series | KK254, 171857 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.265\" (6.73mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1718570008: A friction lock on the shroud holds the header to its mating half under moderate vibration — enough for automotive interior or telecom rack use, but not for heavy shock. The nylon housing carries a UL94 V-2 flammability rating, which is standard for general-purpose equipment inside an enclosure. The 0.250" (6.35mm) insulation height provides enough standoff for wire dress under the shroud.
We source this active Molex header per RFQ against your BOM quantity.
This header mates with standard KK254 crimp receptacle housings (e.g., Molex 2695 series) or IDC sockets. The friction lock requires the matching housing with a lock ramp.
