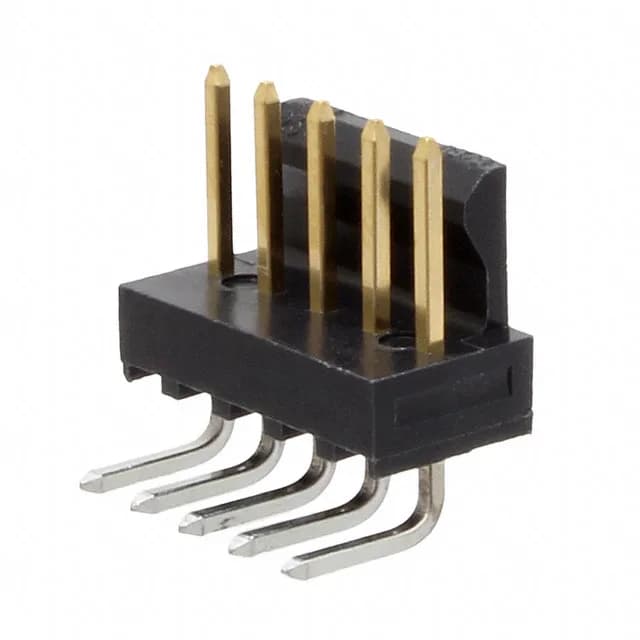

Right-angle through-hole mount for board-edge harness routing
The one-wall shroud and friction lock keep the mating housing aligned and engaged under moderate vibration, without needing a secondary latch. Gold on the mating contact surface (15.0µin) supports repeated connect/disconnect cycles; tin on the solder tail keeps the through-hole joint reliable.
Pitch and footprint — standard KK254 grid
At 0.100" pitch, this header matches the classic KK254 footprint — the same grid used across Molex's KK series for wire-to-board and board-to-board interconnects. The 5 positions are all loaded. The mating pin length is 0.265" (6.73mm), and the post length is 0.100" (2.54mm) — typical for a standard through-hole solder joint on a 1.6mm board.
