Molex KK254, 171857 series, Board to Board or Cable, Header, Male Pin, 2 Positions, 1 Row, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Friction Lock, Shrouded - 1 Wall, Tin Mating & Post, Black Nylon, UL94 V-2, Active, ROHS3
| Parameter | Value |
|---|---|
| Series | KK254, 171857 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.265\" (6.73mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |

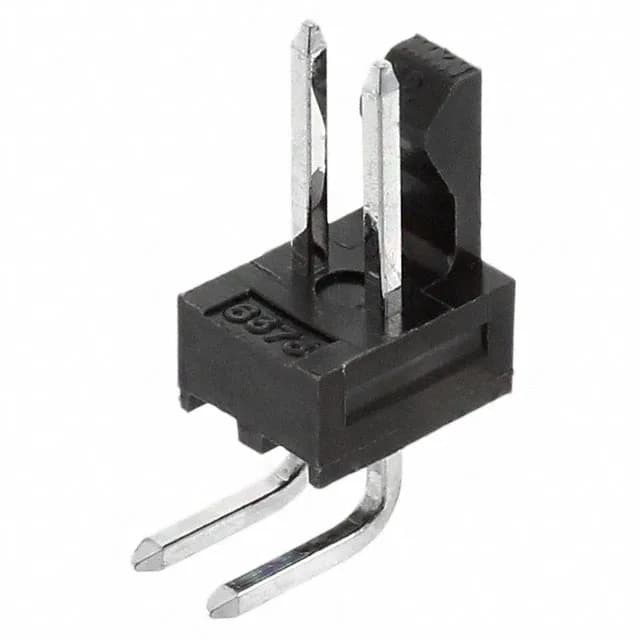

The 1718573002: Right-angle orientation through the board, with a shrouded 1-wall design and a friction lock that keeps the mating half from backing off under vibration.
At 2 positions this is the smallest circuit count in the 171857 base series.
This is a 2-position, 0.100" pitch, single-row male header with a friction lock.
