Molex 1719710006

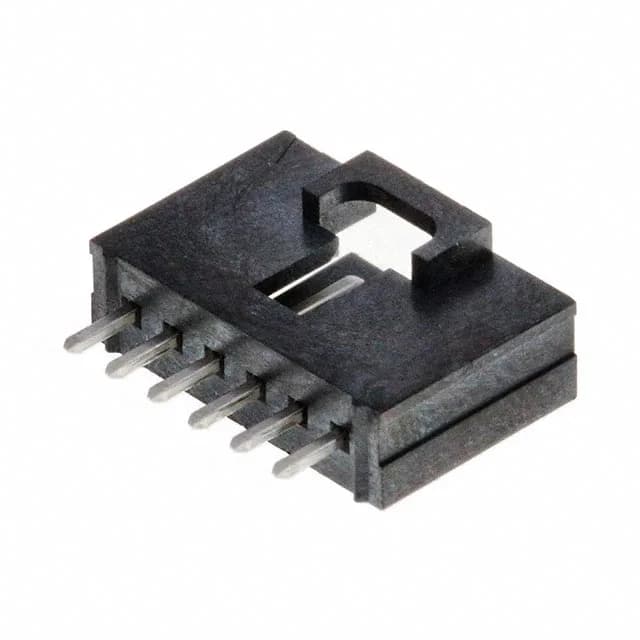

Molex 1719710006 – SL Series 6-Pin Shrouded Header, 2.54mm

MPN 1719710006
Active

Molex SL 171971 series, 1719710006, 6-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder, 3 A, 250 V, UL94 V-0, tin-plated contacts, polarizing key, latch holder, active production.

$1.4300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSL 171971
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1719710006 key specifications
ParameterValue
SeriesSL 171971
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.465\" (11.80mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

1719710006 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesPolarizing Key
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-to-wire header for SL-series harnesses

The 1719710006: The header is fully shrouded (4-wall) with a polarizing key and latch holder, which prevents mismating and locks the connector pair together under vibration.

Pitch, position count, and plating that drive the fit

With 6 positions loaded and a single-row layout, this header fits into a compact 0.600" (15.24 mm) board footprint.

The 0.240" (6.10 mm) mating pin length engages with SL crimp terminals in the receptacle housing. Mates with Molex SL series crimp housings (e.g., 70066, 70107, 51110 series) and receptacle assemblies that accept 22–28 AWG wire.
