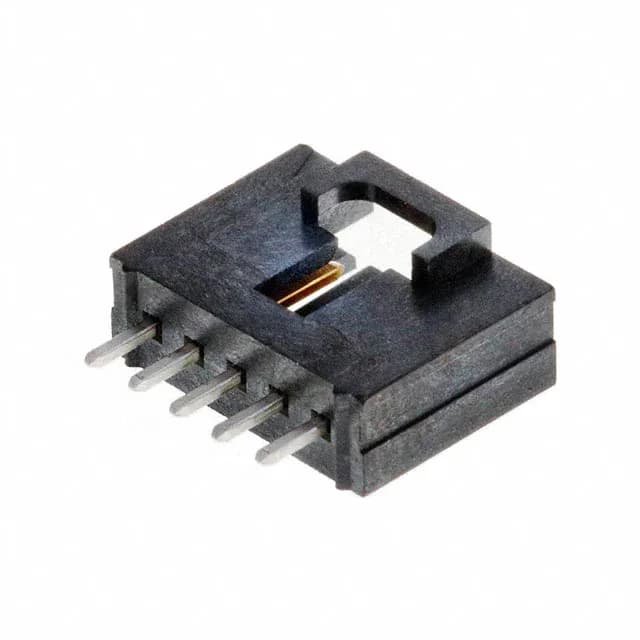

Molex SL 171971 series, Board to Cable/Wire header, 5 circuits, 0.100" (2.54 mm) pitch, shrouded - 4 wall, latch holder, through-hole solder, gold-plated mating contacts, rated 3 A at 250 V
| Parameter | Value |
|---|---|
| Series | SL 171971 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Polarizing Key |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The polarizing key prevents mis-mating with unkeyed receptacles.
Each contact is rated 3 A at 250 V, typical for signal-level interconnects at this pitch. The LCP insulation and UL94 V-0 flammability rating suit the header for use inside equipment enclosures where flame retardance is required.
It also includes a polarizing key to prevent mis-mating.
