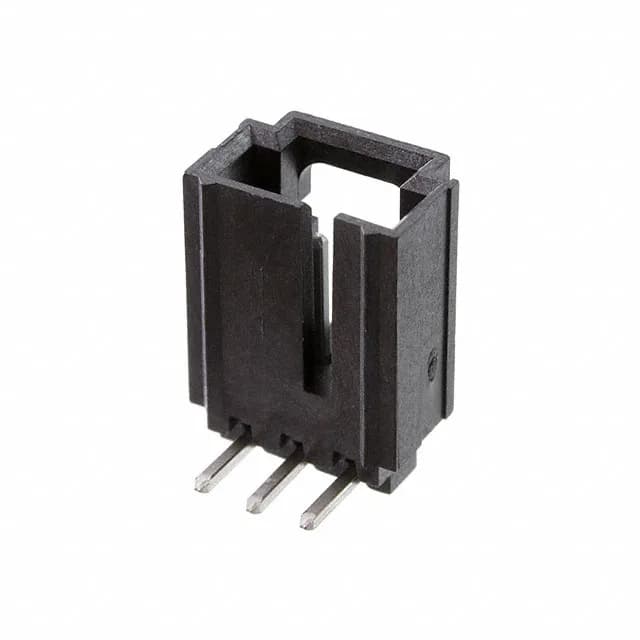

Molex SL 171974 series, 1719740003, Board to Cable/Wire header, 3 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded - 4 wall, latch holder, polarizing key, tin-plated contacts, 3A, 250V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | SL 171974 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Polarizing Key |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
A latch holder provides positive retention beyond friction fit, reducing the risk of un-mating under vibration or cable strain. The polarizing key ensures the header mates only with the correct SL-series receptacle, preventing pin damage from reverse insertion. The 4-wall shrouding fully encloses the male pins, protecting them during handling and guiding the receptacle into alignment.
The mating pitch is 0.100" (2.54mm).
Yes, it is a shrouded - 4 wall header, fully enclosing the male pins.
