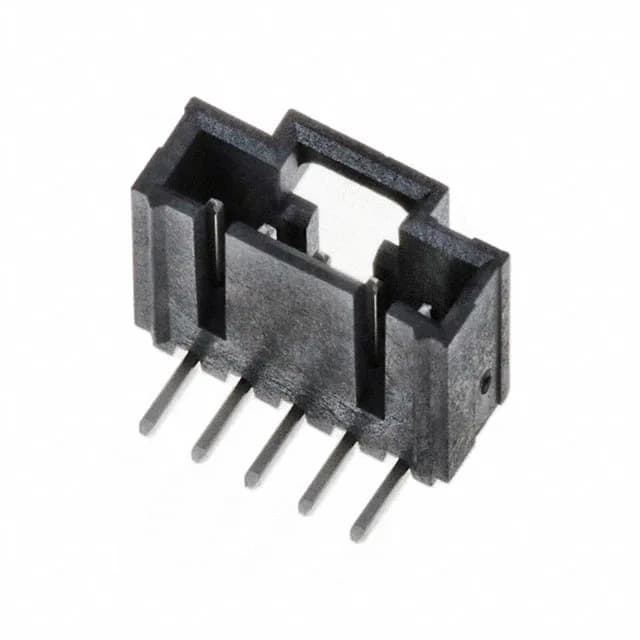

Molex SL 171974 series, 1719740005, Board to Cable/Wire header, 5 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, tin-plated contacts, latch holder, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | SL 171974 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Polarizing Key |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The header mates with Molex SL series crimp receptacle housings (such as the 70066 series) using the matching SL crimp terminal. Termination is solder to through-hole PCB; the contact length post is 0.130" (3.30mm) and the mating contact length is 0.240" (6.10mm).
The 1719740005 mates with Molex SL series crimp receptacle housings (e.g., 70066 series) using the matching SL crimp terminal. The latch holder on the header locks with the receptacle's ramp.
