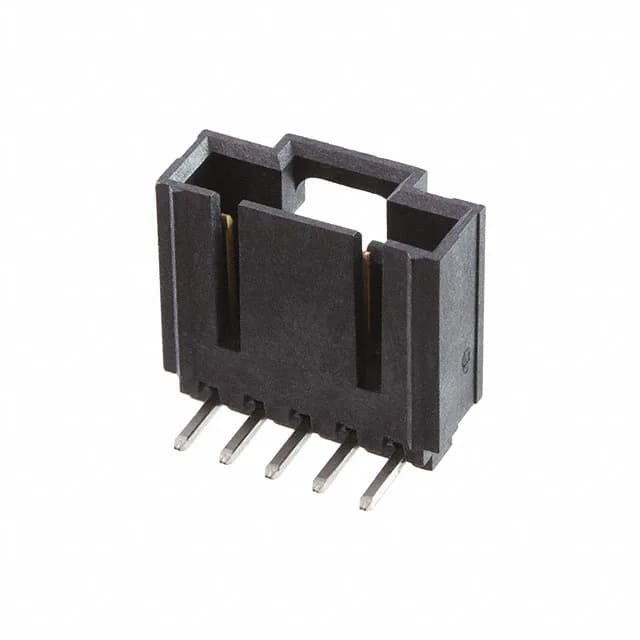

Molex SL 171974 series, Board to Cable/Wire header, 5 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, 3A, 250V, active.
| Parameter | Value |
|---|---|
| Series | SL 171974 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Polarizing Key |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1719740105: The right-angle through-hole mounting routes the mating wire parallel to the PCB, saving vertical space in tight enclosures.
The 4-wall shrouding and latch holder protect the pins during mating and resist vibration-induced disconnection.
