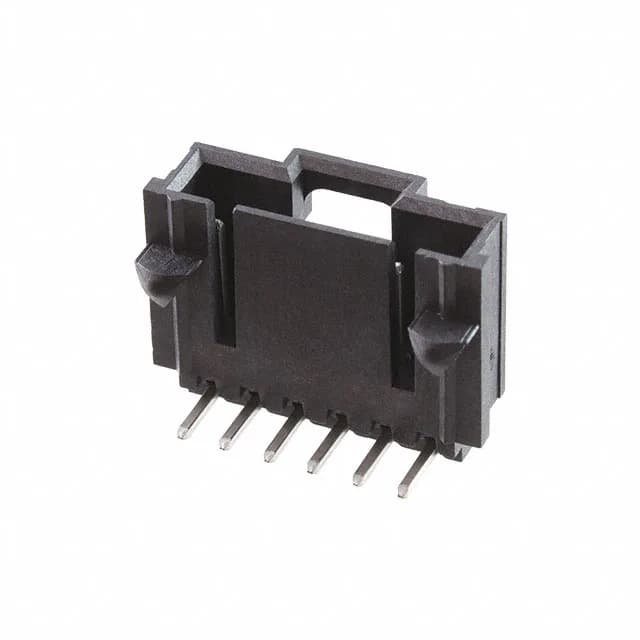

Molex SL 171975 series header, order code 1719750006, 6 positions, single row, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, latch holder, tin-plated square pins, 3 A per contact at 250 V, UL94 V-0 LCP housing, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | SL 171975 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Six positions loaded, all populated — no option for selective loading on this order code. The single-row layout at 0.100" pitch keeps the board footprint narrow: the header body is 0.276" (7.00 mm) tall off the board surface, and the post length below the board is 0.130" (3.30 mm). Mating pin length is 0.240" (6.10 mm), which engages fully with standard SL crimp housings.
Supplied in tube packaging.
The pitch is 0.100" (2.54 mm), single row, 6 positions loaded.
Yes, it is RoHS3 compliant (per the manufacturer's status).
Rated 3 A per contact at 250 V. The tin-plated contacts handle typical signal-level and low-power loads within that envelope.
It mates with a 6-position SL series crimp receptacle housing (e.g. Molex 50-57-9406) using the SL crimp terminal (e.g. 16-02-0102). The latch holder on the header engages the receptacle's locking ramp.
