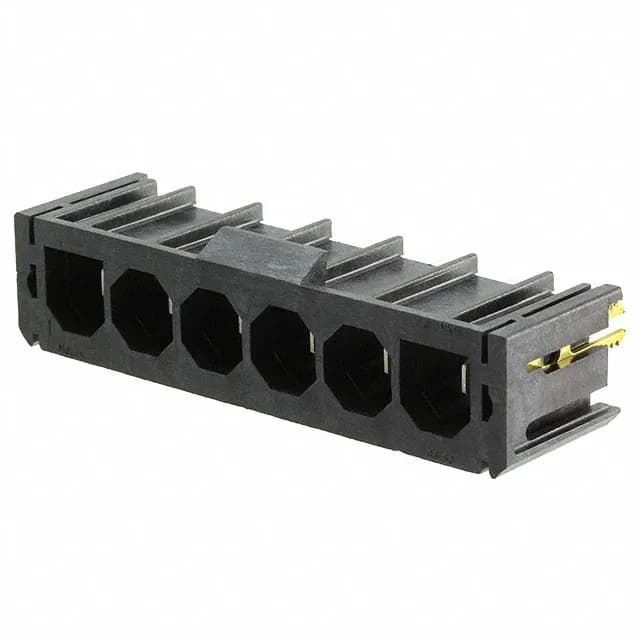

Molex Super Sabre 172042, Header, Male Blades, 6 Positions, 1 Row, 7.50 mm Pitch, Solder Termination, Through Hole, 30 A, 600 V, Silver Contact Finish, Black, Tray.
| Parameter | Value |
|---|---|
| Series | Super Sabre 172042 |
| Mounting | Through Hole |
| Connector type | Header, Male Blades |
| Fastening type | Locking Ramp |
| Voltage rating | 600 V |
| Current rating | 30 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Copper |
| Material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| Pitch | 0.295\" (7.50mm) |
| Package | Tray |
| Features | Board Lock, Finger-Proof |
| Termination | Solder |
| Contact finish | Silver |
| Rows | 1 |
| Positions | 6 |
| Contact finish thickness | 100.0µin (2.54µm) |
The 600 V rating alongside it means the creepage distance across the 7.50 mm pitch is sufficient for that voltage in a pollution degree 2 environment. The silver contact finish is the enabler: silver has lower bulk resistivity than tin, so the contact interface runs cooler at 30 A than a tin-plated contact of the same cross-section would. If the BOM line calls for 30 A per position, this header meets it without needing a dual-row or larger-pitch part.
It mates with the Super Sabre receptacle housing that accepts the matching crimp terminal.
