Molex 1720430201

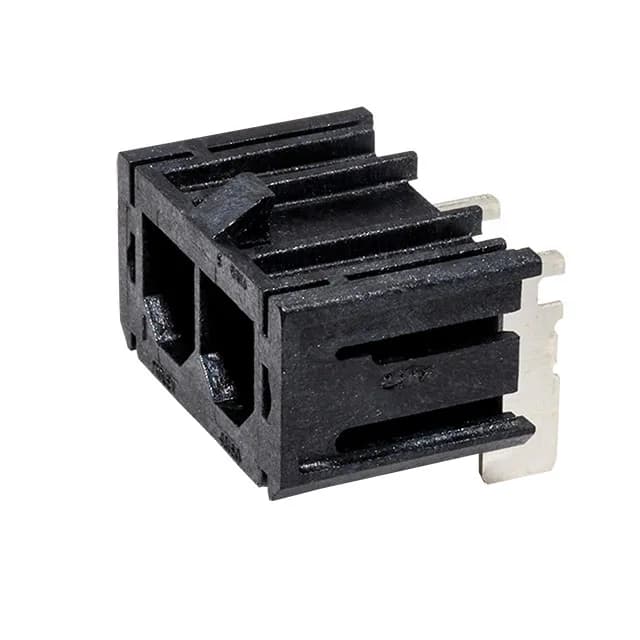

Molex Super Sabre 1720430201, 2-pos 7.50mm R/A Header, 30 A

MPN 1720430201
Active

Molex Super Sabre 172043 series, header, male blades, 2 positions, 0.295" (7.50mm) pitch, 1 row, through hole, right angle, solder termination, silver contacts, 30 A, 600 V.

$2.1900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSuper Sabre 172043
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1720430201 specifications
ParameterValue
SeriesSuper Sabre 172043
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating30 A
Operating temperature-40°C ~ 125°C
ColorBlack
Contact materialCopper
Material - insulationLiquid Crystal Polymer (LCP), Glass Filled
Pitch0.295\" (7.50mm)
PackageTray
FeaturesFinger-Proof
TerminationSolder
Contact finishSilver
Rows1
Positions2
Contact finish thickness100.0µin (2.54µm)

Product details

Power pair for a 30 A bus — what this header is

The Molex 1720430201 is a 2-position male-blade header from the Super Sabre 172043 series, built to carry 30 A per circuit at 600 V on a 7.50 mm pitch. The right-angle through-hole orientation puts the blades parallel to the PCB plane, which is how you bring a power pair off the board edge toward a busbar or a mating receptacle in a harness assembly. Silver contact finish at 100.0 µin thickness is the standard choice for this current level — gold would erode under the arc and temperature rise of repeated 30 A mate cycles.

Sizing the board footprint for this power header

At 7.50 mm pitch and 2 positions, the footprint is a single-row pair of through-hole solder tails spaced 7.50 mm apart. The right-angle orientation means the tails emerge on the solder side perpendicular to the blade axis — check your board keep-out for the body depth behind the mounting face. There is no sibling in the Super Sabre 172043 series at the same pitch with a different position count that changes the footprint class; the 2-position is the smallest member, and the same 7.50 mm pitch scales up to higher position counts in the series if your circuit count grows.

MPN
1720430201
