The 1720641004 is a 4-position, 2-row header from the Molex Mega-Fit series, designed to carry power from a PCB to a cable assembly. The 5.70mm pitch gives you room to route wider traces on the board without crowding the adjacent circuits. It mates with a Mega-Fit receptacle housing (sold separately) and locks with a ramp latch — that latch keeps the pair together when the equipment vibrates, which is why you see this connector in automotive and industrial cabinets.

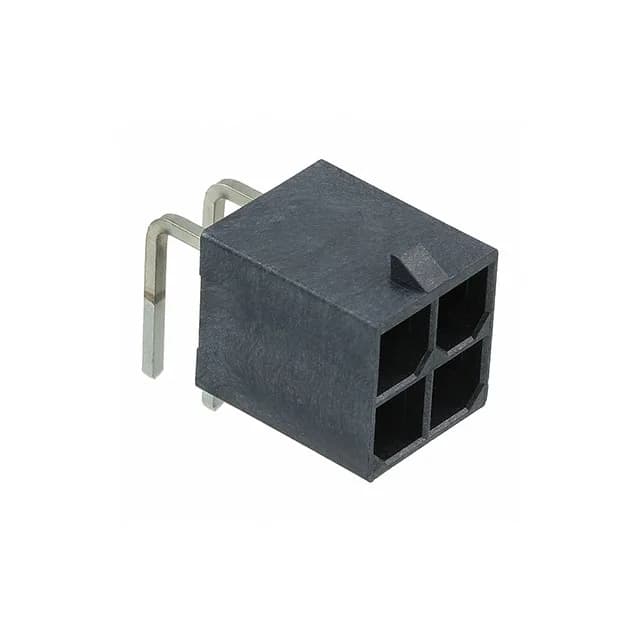

1720641004 Molex Mega-Fit Header R/A 4POS 5.7mm
MPN1720641004
Active
Molex Mega-Fit 1720641004, board-to-cable/wire header, 4 circuits, 2 rows, 5.70mm pitch, right-angle through-hole, shrouded with locking ramp, gold-plated mating contacts, UL94 V-0 LCP housing.
$4.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMega-Fit
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mega-Fit |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper |
| Insulation color | Black |
| Insulation height | 0.572\" (14.53mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.224\" (5.70mm) |
| Positions | 4 |
| Row spacing - mating | 0.224\" (5.70mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 1720641004?
The 1720641004 mates with a Molex Mega-Fit receptacle housing (female side) that accepts crimp terminals. The receptacle part number depends on circuit count and keying — confirm the mating half against your cable assembly drawing before ordering.
Is 1720641004 suitable for automotive applications?
Yes — the 1720641004 is listed for automotive, industrial, and telecommunications use. The locking ramp and shrouded 4-wall housing protect the contacts from vibration and misalignment. The housing material is UL94 V-0 rated LCP, which handles underhood temperatures.
