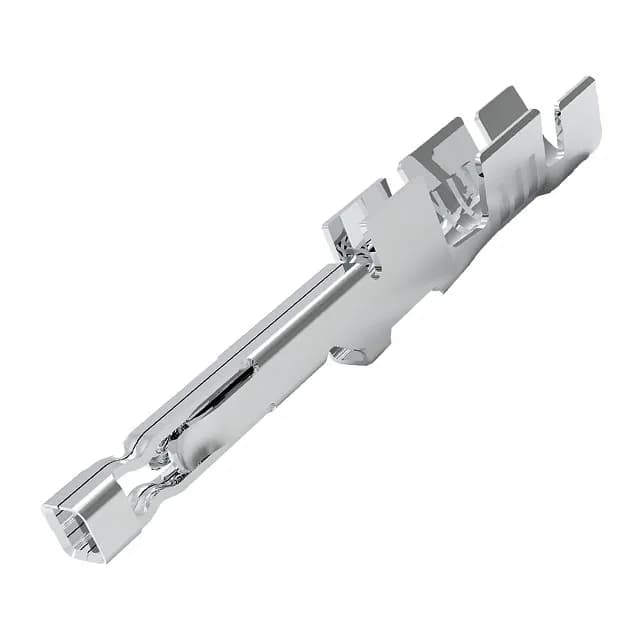

Molex Ultra-Fit 172253 crimp terminal, order code 1722537123, socket, 20-22 AWG, tin-plated contact, 40.0µin (1.02µm) plating thickness, crimp termination, Tape & Reel packaging.
| Parameter | Value |
|---|---|
| Type | Power |
| Series | Ultra-Fit 172253 |
| Wire gauge | 20-22 AWG |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Pin or socket | Socket |
| Contact finish | Tin |
| Contact termination | Crimp |
| Contact finish thickness | 40.0µin (1.02µm) |
The 1722537123 is the tin-plated socket member of the Molex Ultra-Fit 172253 crimp terminal line, accepting 20-22 AWG wire. Contact finish thickness is 40.0µin (1.02µm) tin, applied over the base metal. Crimp termination — no solder required; the terminal is loaded into the matching Ultra-Fit housing after crimping.
ROHS3 Compliant per the listed lifecycle record. No UL, CSA, or IEC ratings are on file for this terminal.
20-22 AWG. The terminal is a crimp socket — use the Molex application tooling specified for the Ultra-Fit 172253 series.
