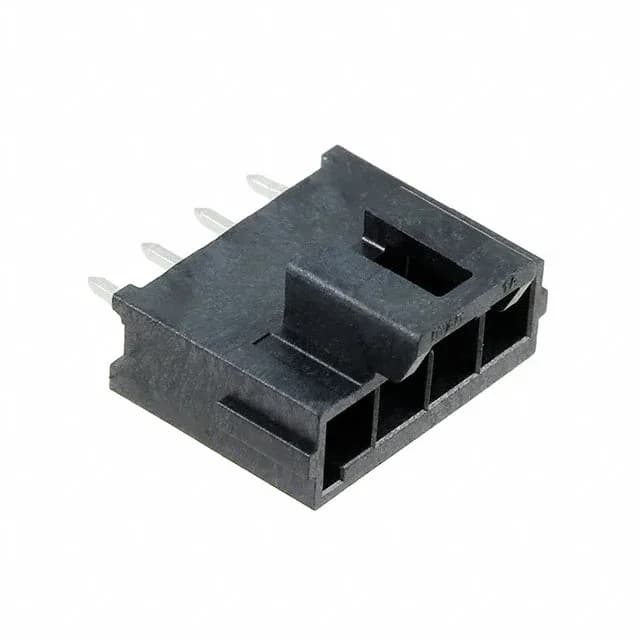

Molex 1722861204 Ultra-Fit Header 4 Pos 3.5mm Pitch

MPN 1722861204
Active

Molex Ultra-Fit 172286, header, 4 circuits, 3.50mm pitch, shrouded 4-wall, through-hole, kinked pin solder, gold mating, 600V, -40°C to 120°C, UL94 V-0.

$1.4700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesUltra-Fit 172286
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1722861204 key specifications
ParameterValue
SeriesUltra-Fit 172286
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating600V
Operating temperature-40°C ~ 120°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.465\" (11.80mm)
Insulation materialLiquid Crystal Polymer (LCP)
Mated stacking heights26.99mm

All specifications

1722861204 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.138\" (3.50mm)
Positions4
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

4-position, 3.50mm pitch, shrouded header

The 1722861204: This is a Molex Ultra-Fit 172286 series header, 4 positions, single row, at 3.50mm pitch — a common footprint for power and signal in automotive, industrial, and lighting applications. The 4-wall shroud and latch holder give it a positive lock against vibration, and the 600V rating covers most low-to-medium voltage bus and distribution needs.

Through-hole termination with kinked pin

The contact length after the board is 0.126" (3.20mm), which fits standard 1.6mm PCBs with enough tail for a reliable fillet.

Gold mating, tin post, wide temperature range
