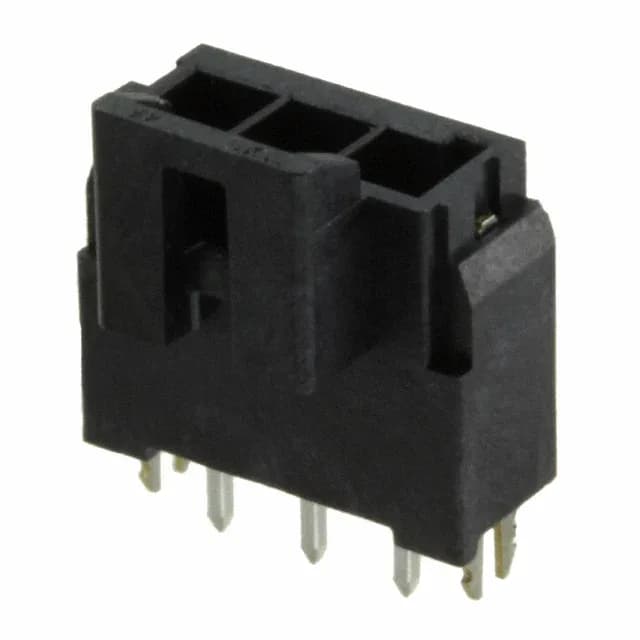

Molex Ultra-Fit 172287 series, 1722871303, Board to Cable/Wire header, 3 circuits, 3.50mm pitch, through hole, shrouded, gold mating, 400V, -40°C ~ 120°C.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172287 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Its 3.50mm pitch and 400V rating suit it for power distribution in automotive, industrial, and lighting systems.
The 3.50mm pitch is wider than typical signal headers, allowing higher current per contact (though the exact current rating is not listed here).
The mating pitch is 0.138" (3.50mm).
