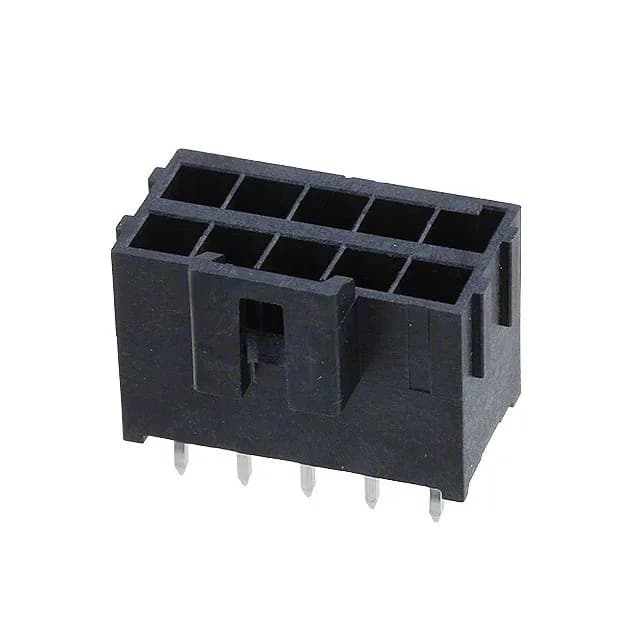

Molex Ultra-Fit 172298 series, 1722981210, Board to Cable/Wire header, 10 circuits, 2 rows, 3.50 mm pitch, shrouded 4-wall, latch holder, through-hole, kinked pin solder termination, gold mating finish, 400 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172298 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 10 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Its 3.50 mm pitch and 0.181" (4.60 mm) row spacing give it a compact footprint for routing power and signal in space-constrained enclosures.
Rated 400 V, this header supports the insulation coordination needed for industrial and lighting power distribution. The -40°C to 120°C operating range covers underhood automotive and outdoor telecom cabinet conditions without derating.
The 1722981210 is a male pin header. It mates with a female receptacle from the same Ultra-Fit 172298 series, typically a crimp-housing assembly using the matching terminal. Confirm the circuit count and keying before ordering the mating half.
Yes, the fastening type is Latch Holder, which secures the mating receptacle and provides vibration resistance.
