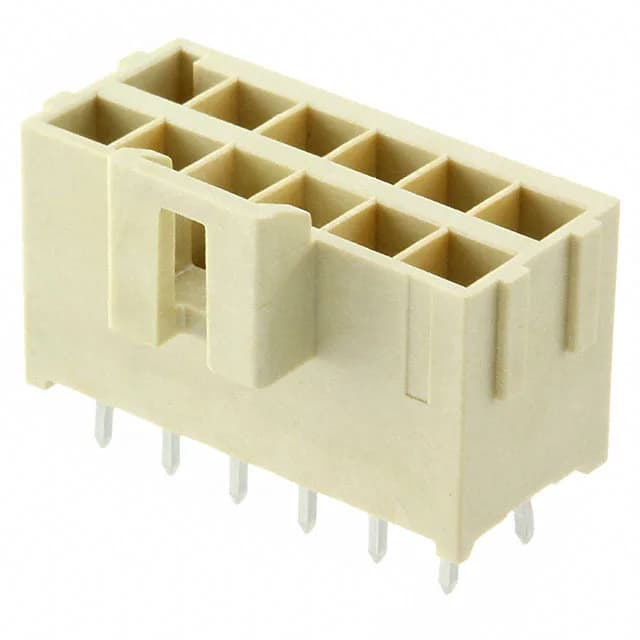

Molex Ultra-Fit 172298 series, Board to Cable/Wire header, 12 positions, 2 rows, 0.138" (3.50mm) pitch, shrouded - 4 wall, latch holder, through hole, kinked pin solder termination, tin contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172298 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1722982112: This is a Molex Ultra-Fit 172298 series header, 12 circuits in two rows at 0.138" (3.50 mm) pitch — the row spacing is 0.181" (4.60 mm).
The mated stack height is 26.99 mm — useful when planning clearance to the next board or enclosure wall.
The pitch is 0.138" (3.50 mm) between contacts, with a row spacing of 0.181" (4.60 mm).
This header mates with a Molex Ultra-Fit 172298 series receptacle housing (e.g., 172299 series) using the matching crimp terminals. The latch holder on the header engages the receptacle's lock feature.
Yes, the series is listed for automotive, as well as general purpose, industrial, lighting, medical, military, and telecommunications use.
