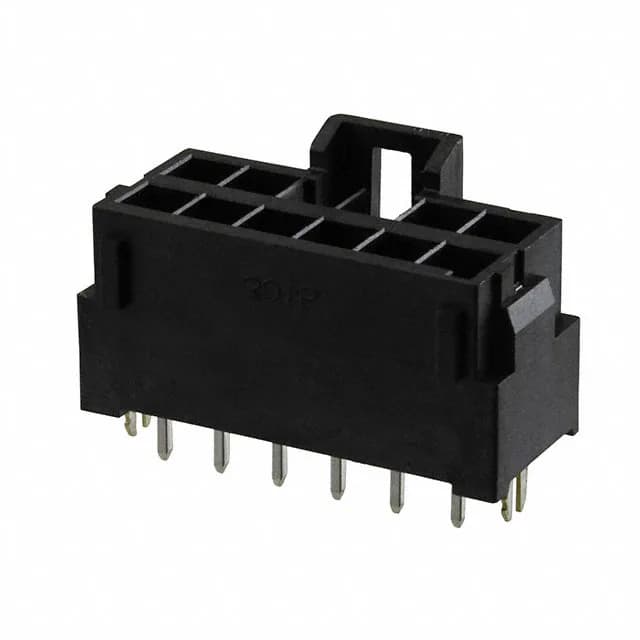

Molex Ultra-Fit 172299 series, 1722991112, board-to-cable/wire header, 12 positions, 2 rows, 3.50mm pitch, shrouded 4-wall, through-hole solder termination, latch holder fastening, tin-plated contacts, UL94 V-0 LCP housing, -40°C to 105°C, 400V rating.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172299 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 400V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Mated stacking heights | 26.99mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 1722991112: This is a vertical through-hole header, 12 positions in two rows at 3.50mm pitch, with a row spacing of 4.60mm.
The square male pins are copper alloy. Current rating per contact is not listed in the standard spec table.
A pin-compatible alternative within the same pitch and row count would be the Molex Ultra-Fit 172299 series with the same 12-position, 2-row layout; verify the keying feature matches your receptacle.
Yes, it is ROHS3 Compliant.
Within the Molex Ultra-Fit 172299 series, any 12-position, 2-row header with the same 3.50mm pitch and 4.60mm row spacing is form-fit-function compatible, provided the shrouding and latch features match your receptacle. Verify the keying and polarization before substituting.
