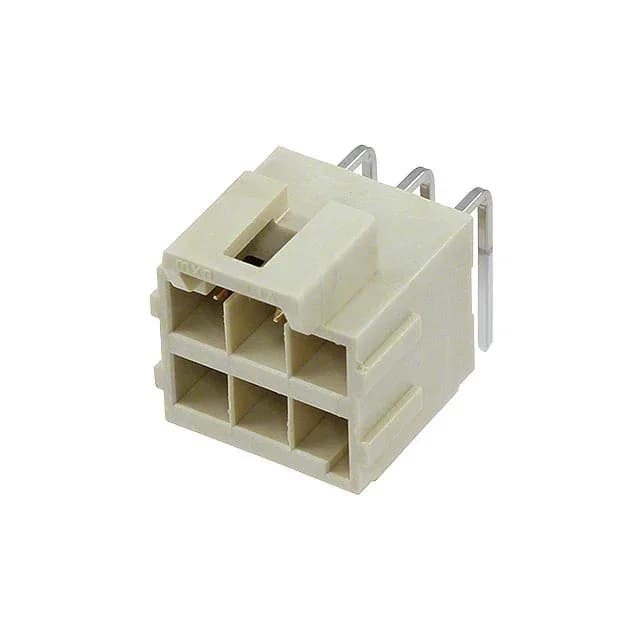

Molex Ultra-Fit 172316 series header, 1723162206, 6-circuit board-to-cable/wire, 3.50mm pitch, 4.60mm row spacing, right-angle through-hole, shrouded 4-wall, latch holder, gold-plated mating pins, UL94 V-0 LCP housing, -40°C to 120°C, 600 VAC/DC.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 172316 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600VAC/DC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.534\" (13.56mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.138\" (3.50mm) |
| Positions | 6 |
| Row spacing - mating | 0.181\" (4.60mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.126-inch (3.20 mm) post length gives enough solder tail for through-hole wave soldering without protruding too far past the board bottom. The 0.534-inch (13.56 mm) insulation height means the shroud stands well above the board — check clearance to nearby components or enclosure walls before committing the layout.
The mating connector is the Ultra-Fit 172316 receptacle housing (female side) with the corresponding crimp terminals. The latch holder on this header locks into the receptacle ramp for a vibration-resistant mate.
Yes, 1723162206 is ROHS3 compliant per the manufacturer's listing.
