Two-circuit right-angle header for board-to-cable power
Mounting and termination fit
The 0.142" (3.60mm) post length and tin-plated solder tails suit standard wave-solder profiles; the board lock adds mechanical retention before soldering.

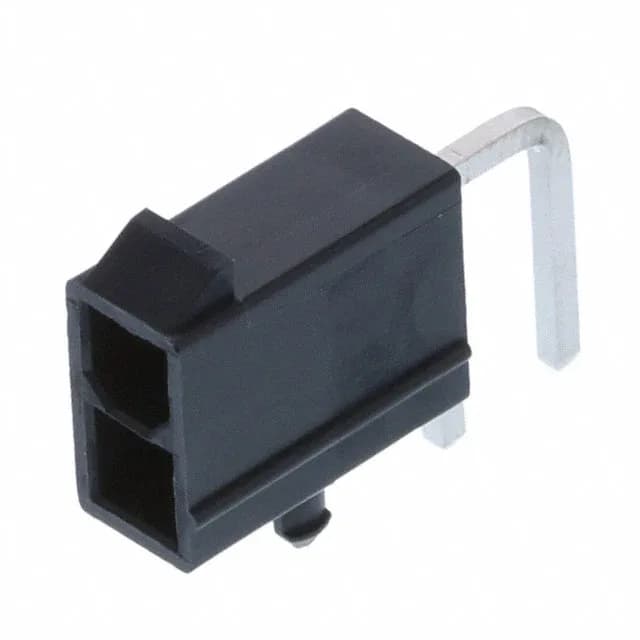

1724480002 Molex Mini-Fit Jr 2-Position Right-Angle Header
MPN1724480002
Active
Molex, Mini-Fit Jr 172448 series, Board to Cable/Wire header, 2 circuits, 2 rows, through-hole right-angle, shrouded 4-wall, locking ramp, board lock, glow wire compliant, tin-plated contacts, UL94 V-2, tray pack.
$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Fit Jr 172448
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 172448 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What connectors mate with 1724480002?
This header mates with a 2-circuit Mini-Fit Jr receptacle housing (e.g., 39-01-2020) using standard crimp terminals. The locking ramp provides positive retention.
Is 1724480002 RoHS compliant?
Yes, 1724480002 is ROHS3 compliant.
