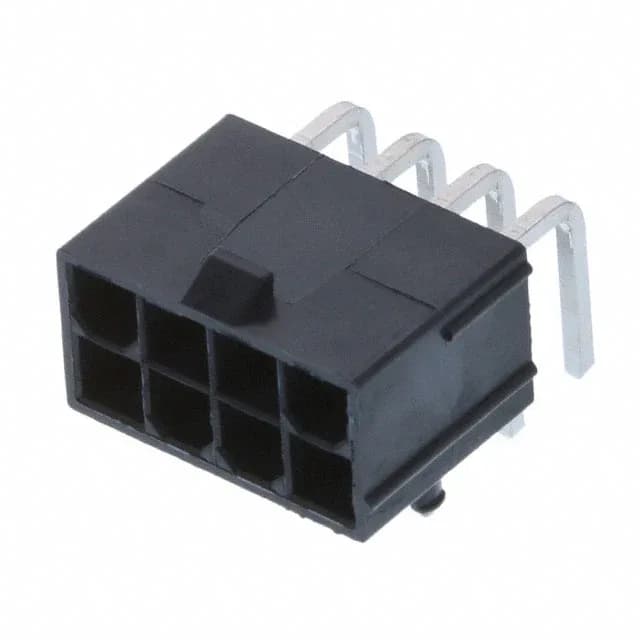

Molex Mini-Fit Jr 1724480008, 8-position right-angle header, 4.20 mm pitch, shrouded 4-wall, board lock, glow wire compliant, tin-plated contacts, active production.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 172448 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.378\" (9.60mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 8 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 1724480008: This is a Molex Mini-Fit Jr 172448 series header, 8 positions, 2 rows, at 4.20 mm pitch — a standard power/signal interconnect for board-to-cable/wire applications.
The header is also glow wire compliant, meeting IEC 60335-1 requirements for appliances where the connector must not ignite under fault conditions.
Yes, the header includes board locks for through-hole retention during soldering and vibration resistance.
