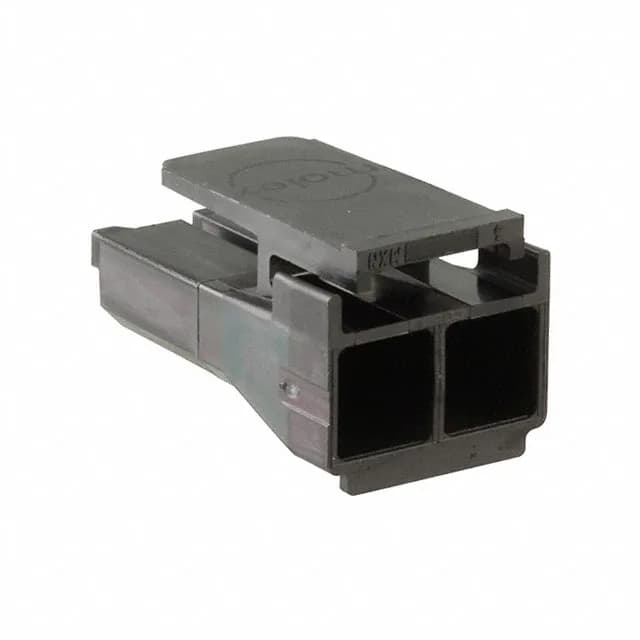

Molex Super Sabre 172672 receptacle housing, 2 circuits, 1 row, 7.50 mm pitch, 34 A, free-hanging in-line, crimp termination, latch lock, black PA66, contacts not included.
| Parameter | Value |
|---|---|
| Series | Super Sabre 172672 |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Current rating | 34 A |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Material - insulation | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.295\" (7.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The correct female blade socket crimp terminal (Molex Super Sabre series, order separately) must be sourced to complete the assembly. The crimp termination allows field-installable wiring with the proper tooling, but the terminal part number is not the same as the housing. Confirm the terminal gauge range (typically 14-18 AWG for this series) and the crimp tool before committing the BOM line.
Availability is confirmed at quote time — submit an RFQ for current pricing and lead time.
No — the housing ships empty. The 'Contacts Not Included' note means the female blade socket crimp terminals must be ordered separately to complete the assembly.
The pitch is 7.50 mm (0.295"), wide enough to handle the creepage for the 34 A rating. Confirm the mating header uses the same pitch before specifying.
