Molex 1726723002

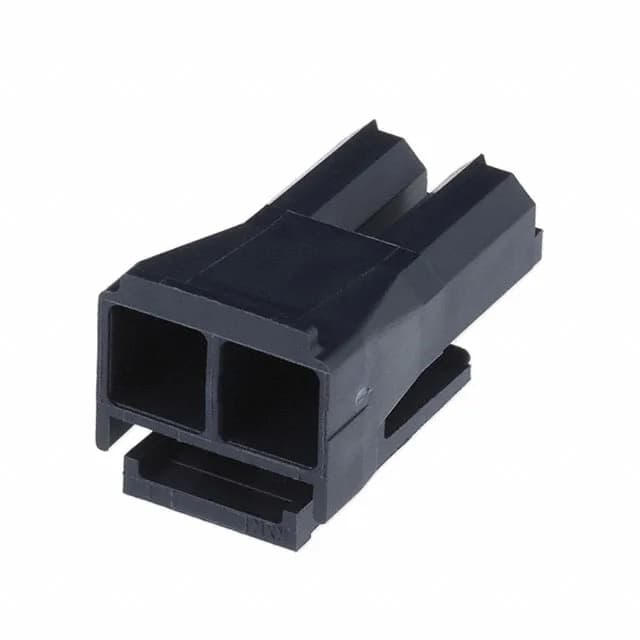

Molex Super Sabre 1726723002 Receptacle, 2-Circuit, 34 A

MPN 1726723002
Active

Molex Super Sabre 172672 receptacle housing, 2 circuits, 1 row, 7.50 mm pitch, 34 A, free-hanging in-line, crimp termination, latch lock, black PA nylon, -40°C to 125°C.

$1.3800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSuper Sabre 172672
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1726723002 specifications
ParameterValue
SeriesSuper Sabre 172672
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Current rating34 A
Operating temperature-40°C ~ 125°C
ColorBlack
Material - insulationPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.295\" (7.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

34 A Power Receptacle Housing — 2 Circuits, 7.50 mm Pitch

It carries a 34 A per-circuit current rating — bus-level current for a 2-position housing, sized for a main DC power feed, motor supply, or battery interconnect rather than signal duty. The latch lock fastening provides positive retention against vibration without requiring screw threads, making it suitable for mobile or machinery harnesses where the connector pair must stay mated under shock and vibration. The housing accepts the terminal and the latch lock secures the pair to the mating male header.

For a wire-to-wire harness, both halves use the same crimp terminal family; for a board-mounted application, the header is soldered to the PCB and the receptacle terminates the cable assembly.

For BOM planning, order the housing and the crimp terminals as separate line items; the housing alone does not include contacts.

MPN
1726723002
