Molex 1726723006

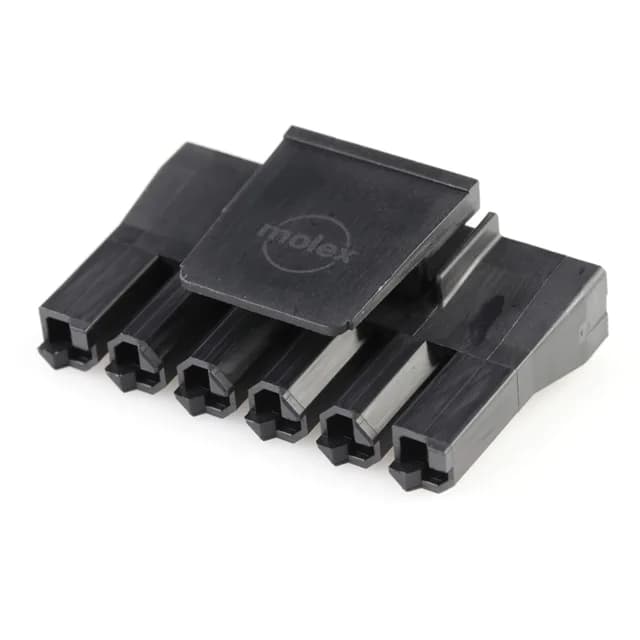

Molex Super Sabre 1726723006, 6-Circuit Receptacle, 34 A

MPN 1726723006
Active

Molex Super Sabre 172672 series, receptacle housing, 1726723006, 6 circuits, 1 row, 7.50 mm pitch, 34 A, crimp termination, free-hanging, latch lock, black PA nylon, -40°C to 125°C.

$1.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSuper Sabre 172672
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1726723006 specifications
ParameterValue
SeriesSuper Sabre 172672
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Current rating34 A
Operating temperature-40°C ~ 125°C
ColorBlack
Material - insulationPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.295\" (7.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions6

Product details

Super Sabre 6-Circuit Power Receptacle Housing

The 7.50 mm pitch provides generous creepage for the 34 A per circuit rating, making this a bus-level power interconnect rather than a signal connector.

34 A per circuit is the headline rating here, and it means each contact carries power-distribution-level current — think main DC rails, battery interconnects, or server PSU outputs. The 7.50 mm pitch is wide enough to keep the heat from adjacent circuits from stacking, so the full 34 A is usable across all 6 positions simultaneously as long as the wire gauge and crimp terminal match the rating. This is not a signal connector; it is sized for the power path.

You need to order the Super Sabre female blade socket crimp terminals (Molex series 172673) separately. Factor the terminal order into your BOM line; the housing alone is just the shell.

Free-hanging (in-line) mounting, crimp termination — this is a field-serviceable design. The 1-row, 6-position layout keeps the harness narrow. Black PA nylon housing, ROHS3 compliant.

MPN
1726723006
