Molex 1727040001

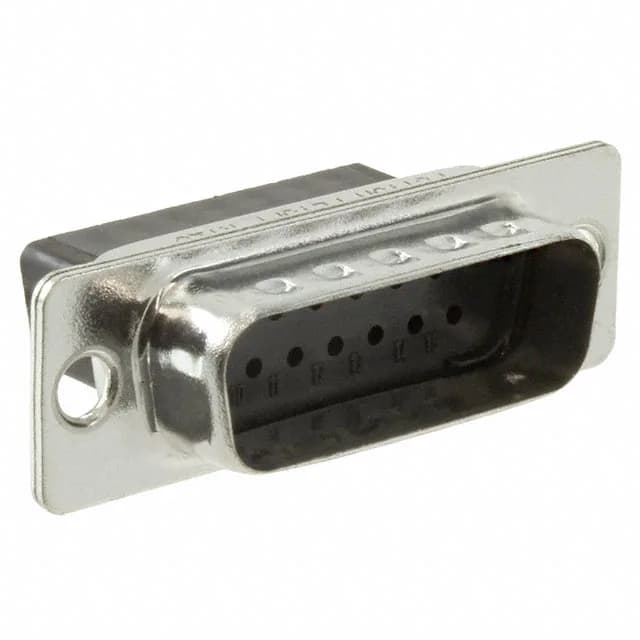

Molex 1727040001 D-Sub Housing Plug, 15 Pos, DA Shell

MPN 1727040001
Active

Molex F, FCT 172704 D-Sub housing plug, 15 positions, 2 rows, DA shell size, free hanging, steel shell with tin plating and grounding indents, black glass-filled nylon housing, ROHS3 compliant.

$3.0900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesF, FCT 172704
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1727040001 specifications
ParameterValue
SeriesF, FCT 172704
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 115°C
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
FeaturesGrounding Indents
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15

Product details

D-Sub 15-Position Plug Housing, DA Shell, Steel Shell with Grounding Indents

The Molex 1727040001 is a 15-position D-Sub plug housing from the F, FCT 172704 series, shell size DA (2). It accepts male crimp contacts and is designed for free-hanging (in-line) mounting — no PCB footprint needed. The steel shell carries a tin-plated finish and includes grounding indents that bleed shield current to the mating receptacle shell before it reaches the signal pins, a detail that matters in electrically noisy environments where conducted EMI can corrupt low-level signals. That temperature range covers industrial cabinet interiors, outdoor telecom enclosures, and engine compartments where standard thermoplastics soften or crack. The glass fill gives the mounting flanges dimensional stability under the screw-down torque of the mating connector. The housing accepts signal-gauge contacts and uses an unthreaded flange for mounting.
