Molex 1727040008

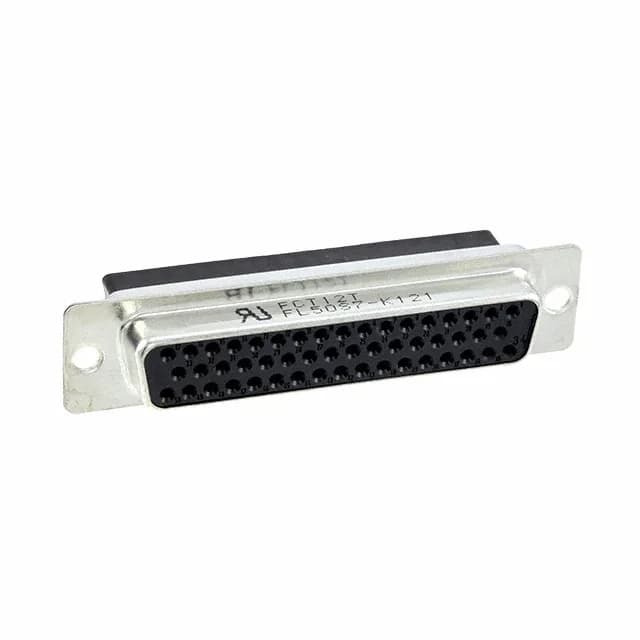

Molex 1727040008 D-Sub Receptacle Housing, 50 Pos, DD Shell

MPN 1727040008
Active

Molex F, FCT 172704 series D-sub receptacle housing, 50 positions, 3 rows, DD shell size (5), free-hanging inline mount, black PA nylon glass-filled shell, steel tin-plated shell, unthreaded flange, contacts not included.

$4.3100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
SeriesF, FCT 172704
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1727040008 specifications
ParameterValue
SeriesF, FCT 172704
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle for Female Contacts
Shell size, connector layout5 (DD, D)
Operating temperature-55°C ~ 115°C
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
Flange featureHousing/Shell (Unthreaded)
Rows3
Positions50

Product details

The Molex 1727040008 is a 50-position D-sub receptacle housing from the F, FCT 172704 series. It uses the DD shell size (connector layout 5) and arranges the contacts in three rows. This is the cable-side half — a free-hanging inline receptacle that accepts female crimp terminals, not a PCB-mount or solder-cup version. The housing is moulded from black glass-filled PA nylon with a steel, tin-plated shell. The unthreaded flange allows panel mounting with the matching hardware, but the primary duty is inline cable-to-cable or cable-to-panel harness assemblies where the receptacle floats rather than bolts rigidly to a board.

Contacts Not Included — The Critical Procurement Detail

The single most important fact about this housing: contacts are not included. The BOM line for 1727040008 covers only the empty receptacle shell. If your assembly house is quoting a per-position price that includes contacts, flag it; the housing and terminals are separate line items. The signal contact type designation means these cavities accept standard D-sub signal-gauge pins — typically 20-28 AWG range, depending on the specific crimp terminal selected. The 3-row DD layout uses the same contact cavity dimensions as other standard-density D-subs in this shell size.

Shell Size and Mating Compatibility

The DD shell size (connector layout 5) is the standard 50-position D-sub footprint. It mates with any standard 50-position D-sub plug housing — male pin side — that uses the same DD shell. The unthreaded flange means the housing has clearance holes for the standard 4-40 or M3 jack-screw hardware, but the screws are not installed; you add them per the assembly requirement. The steel, tin-plated shell provides EMI/RFI shielding continuity when mated with a plug that has grounding dimples or a conductive finish. For applications requiring full 360° shielding, verify the mating plug's shell finish and grounding geometry match the receptacle's tin surface.
