Molex 1727040013

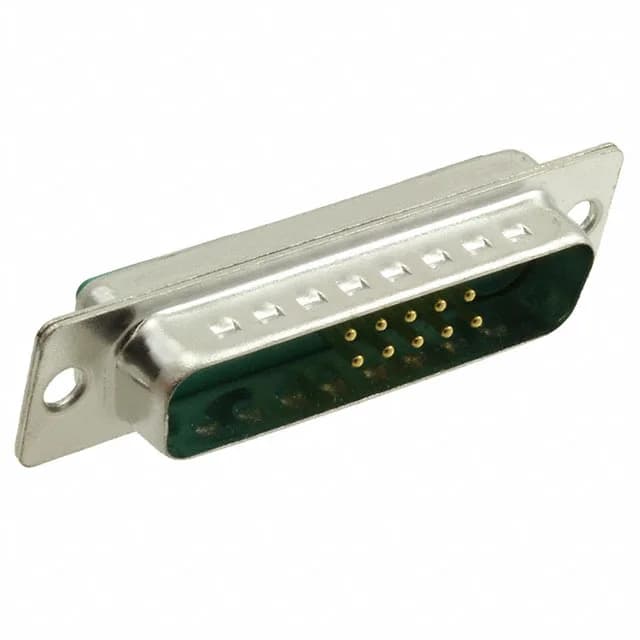

Molex 1727040013 D-Sub Combo Plug, 13 (10+3) Positions

MPN 1727040013
Active

Molex 172704 series D-Sub combo plug, 13 positions (10 signal + 3 coax/power), 2 rows, panel mount, solder cup termination, gold-plated contacts, 5A, -55°C to 130°C, UL94 V-0.

$8.2700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
Series172704
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1727040013 key specifications
ParameterValue
Series172704
TypeSignal and Coax or Power (Not Included)
MountingPanel Mount
Connector typePlug, Male Pins
Current rating5A
Wire gauge20 AWG
Shell size, connector layout3 (DB, B) - 13C3, 13W3
Operating temperature-55°C ~ 130°C
ColorGreen
Contact materialBrass
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin Plated

All specifications

1727040013 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesGrounding Indents
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions13 (10 + 3 Coax or Power)
Contact finish thickness3.94µin (0.10µm)

Product details

13-Position Hybrid D-Sub — What You Actually Get

The Molex 1727040013 is a D-Sub, Combo plug with 13 positions arranged as 10 signal contacts plus 3 coax or power cavities — the 13C3 / 13W3 layout. That hybrid arrangement matters: you get the standard DB-25 shell size (3/B) but with three oversized cavities that accept coax or power contacts instead of standard signal pins. Rated 5A per contact, the signal pins carry the current limit — the coax/power cavities handle higher current depending on the contact installed.

Termination and Mating — What It Takes

Termination is solder cup — each contact gets hand-soldered to a 20 AWG wire. The contacts (signal and coax/power) are not included; you order them separately and crimp or solder them before loading into the insert. The plug mounts to the panel via the unthreaded housing/shell flange — you need a screw or rivet through the mounting holes, not a jack-screw. The grounding indents on the shell ensure shield continuity when mated.

MPN
1727040013
