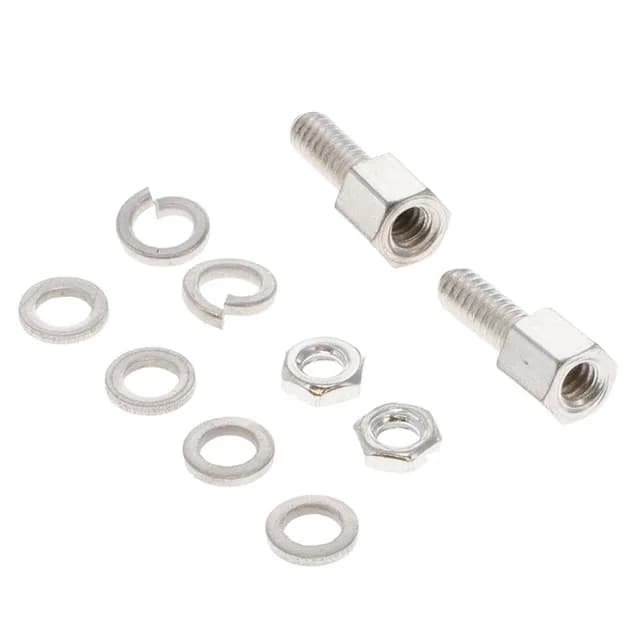

Molex FCT 172704 series, Jackscrew Socket, 4-40 UNC thread, 0.315" (8.00mm) length below head, Bulk, Hardware Included, ROHS3 Compliant.
| Parameter | Value |
|---|---|
| Series | FCT 172704 |
| Accessory type | Jackscrew Socket |
| Package | Bulk |
| Features | Hardware Included |
| Connector size | 4-40 |
| Length - below head | 0.315\" (8.00mm) |
| For use with (Related products) | D-Sub Connectors |
| Length - threaded portion below head | 0.315\" (8.00mm) |
The Molex 1727040093 is a jackscrew socket from the FCT 172704 series, designed for use with standard D-sub connectors. The 0.315" (8.00 mm) length below head is the threaded portion that engages the mating hardware; this dimension determines how far the screw protrudes through the panel or housing. Hardware is included, meaning the jackscrew ships with the necessary nut and washer for installation — no separate hardware order needed.
The thread size is 4-40 UNC, the standard for D-sub jackscrew hardware.
Yes, it is listed for use with D-sub connectors and the 4-40 thread mates with standard D-sub threaded inserts.
The length below head is 0.315" (8.00 mm), which is also the length of the threaded portion below head.
