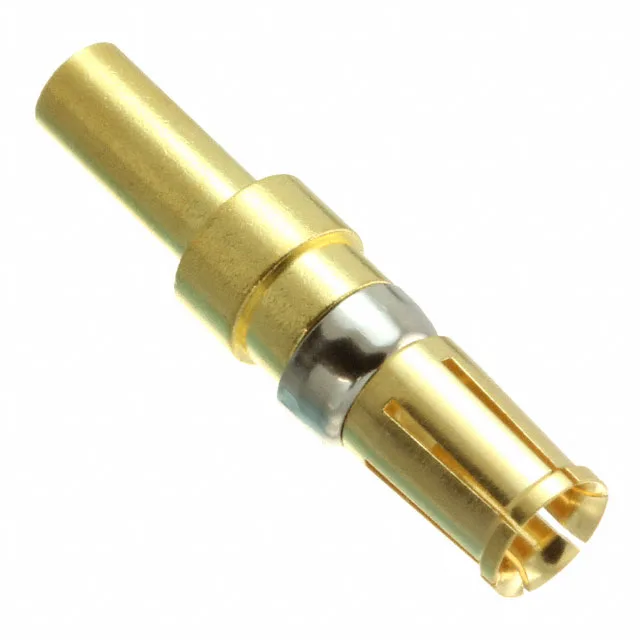

Molex FMP, FCT 172704 D-sub socket, order code 1727040151, 12-14 AWG, machined female contact, gold-plated mating surface 31.5µin (0.80µm), crimp termination, bulk pack.
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Series | FMP, FCT 172704 |
| Contact form | Machined |
| Wire gauge | 12-14 AWG |
| Contact material | Copper Alloy |
| Package | Bulk |
| Contact finish | Gold |
| Termination finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 31.5µin (0.80µm) |
| Termination finish thickness | 8.00µin (0.203µm) |
The 1727040151 is a machined female socket in the Molex FMP / FCT 172704 series, designed for power circuits using 12-14 AWG wire. The gold mating finish is 31.5µin (0.80µm) thick, with an 8.00µin (0.203µm) gold termination finish — the heavier plating on the contact interface handles repeated mating cycles in corrosive environments.
The contact accepts 12-14 AWG wire and terminates by crimp.
