Molex 1727040163 — D-Sub Cable Assemblies

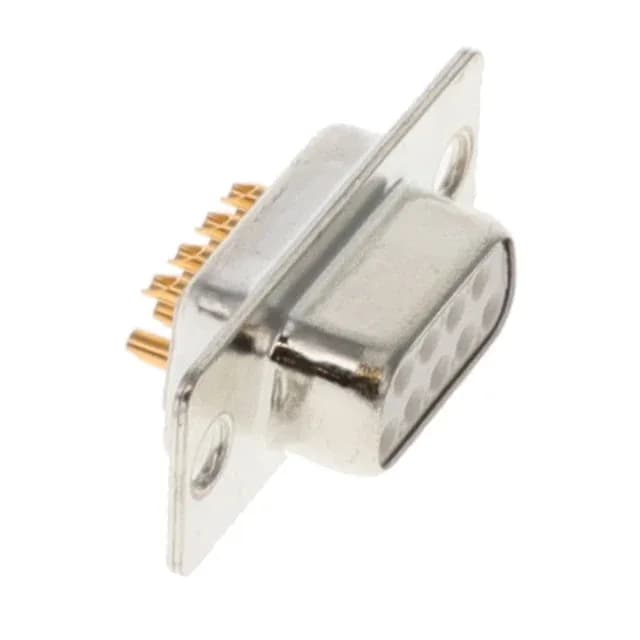

Molex 1727040163, FCT D-Sub Receptacle 9-Pos Solder Cup

MPN1727040163
Active

Molex FCT 1727040163, D-Sub receptacle, 9 positions, DE-9 shell size, 2 rows, solder cup termination, gold-plated brass contacts, 5A rating, free-hanging, white PBT housing.

$4.4100Ref. price · indicative, final on quote
Molex 1727040163 datasheet (PDF)
RoHSROHS3 Compliant
SeriesF, FCT 172704
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1727040163 specifications
ParameterValue
SeriesF, FCT 172704
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating5A
Wire gauge20 AWG
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 125°C
ColorWhite
Contact materialBrass
Dielectric materialPolybutylene Terephthalate (PBT)
Shell material, finishSteel, Tin Plated
PackageBulk
TerminationSolder Cup
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9

Product details

Standard DE-9 Receptacle for Serial and Signal Interconnects

The Molex 1727040163 is a 9-position D-Sub receptacle from the FCT 172704 series, using the standard DE-9 shell layout. It accepts 20 AWG wire into solder cups — each wire is hand-soldered into the cup, no crimp tool needed.

Solder Cup Termination and Wire Gauge

Termination is solder cup — each of the 9 positions has a cup that accepts a stripped 20 AWG conductor. The solder cup gives you a field-repairable joint; you tin the wire, fill the cup, and reflow. No special crimp die or insertion tool required. The gold finish on the contacts handles repeated soldering without oxidation.

5 A Rating and Gold Contact Finish

The brass base material carries the current; gold keeps the interface clean.

Frequently asked questions

Is 1727040163 equivalent to a standard D-sub 9 pin female connector?

Yes — this is a standard DE-9 (9-position) D-Sub receptacle with female sockets. It mates with any standard DE-9 male plug. The shell size and pin layout follow the industry-standard DE-9 footprint used for RS-232 serial ports and other signal interfaces.

What wire gauge is compatible with 1727040163?

The listed compatible wire gauge is 20 AWG. The solder cup is sized for that conductor diameter — use a 20 AWG stranded or solid wire for a proper fit in the cup.
